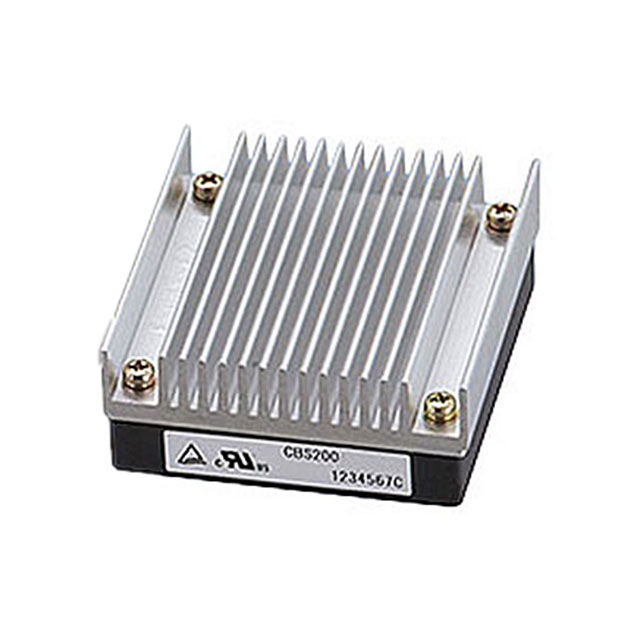

CBS200242R5-F5

Obsolete

Cosel USA, Inc.

DC DC CONVERTER 2.5V 88W

Search across all available documentation for this part.

Obsolete

Cosel USA, Inc.

DC DC CONVERTER 2.5V 88W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Package / Case	Voltage - Isolation	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Outputs	Voltage - Input (Max) [Max]	Supplier Device Package	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency
Cosel USA, Inc. CBS200242R5-RF1	ITE (Commercial)	Half Brick	1.5 kV	88 W	35 A	-40 °C	100 °C	OCP OVP Remote On/Off	1	36 V	Half Brick	Isolated Module	Through Hole	62.5 mm	2.31 "	58.7 mm	2.46 "	26.5 mm	1.04 in	18 V	2.5 V	76 %
Cosel USA, Inc. CBS200242R5-F5	ITE (Commercial)	Half Brick	1.5 kV	88 W	35 A	-40 °C	100 °C	OCP OVP Remote On/Off	1	36 V	Half Brick	Isolated Module	Through Hole	62.5 mm	2.31 "	58.7 mm	2.46 "	52 mm	2.05 in	18 V	2.5 V	76 %
Cosel USA, Inc. CBS200242R5-RT	ITE (Commercial)	Half Brick	1.5 kV	88 W	35 A	-40 °C	100 °C	OCP OVP Remote On/Off	1	36 V	Half Brick	Isolated Module	Through Hole	61 mm	2.28 in	57.9 mm	2.4 in	12.7 mm	0.5 in	18 V	2.5 V	76 %
Cosel USA, Inc. CBS200242R5-R	ITE (Commercial)	Half Brick	1.5 kV	88 W	35 A	-40 °C	100 °C	OCP OVP Remote On/Off	1	36 V	Half Brick	Isolated Module	Through Hole	61 mm	2.28 in	57.9 mm	2.4 in	12.7 mm	0.5 in	18 V	2.5 V	76 %
Cosel USA, Inc. CBS200242R5	ITE (Commercial)	Half Brick	1.5 kV	88 W	35 A	-40 °C	100 °C	OCP OVP Remote On/Off	1	36 V	Half Brick	Isolated Module	Through Hole	61 mm	2.28 in	57.9 mm	2.4 in	12.7 mm	0.5 in	18 V	2.5 V	76 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 2.5V 35A 18V - 36V Input

Technical documentation and resources
