H2170-05
ActiveHarwin Inc.

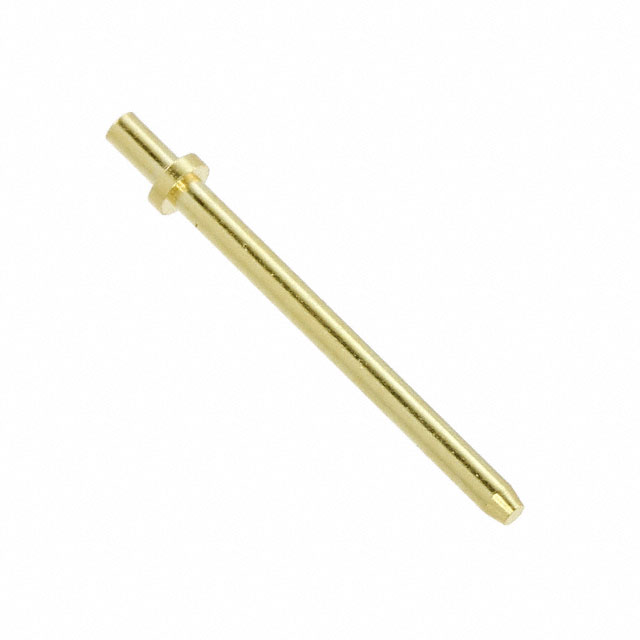

CONN PC PIN CIRC 0.041DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2170-05
ActiveHarwin Inc.
CONN PC PIN CIRC 0.041DIA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2170-05 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Contact Finish | Gold |
| Contact Material | Brass |
| Flange Diameter [diameter] | 1.77 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.5 in |
| Length - Above Flange [x] | 12.7 mm |
| Length - Below Flange [x] | 0.082 in |
| Length - Below Flange [x] | 2.08 mm |
| Length - Overall [x] | 15.29 mm |
| Length - Overall [x] | 0.602 in |
| Mounting Hole Diameter [Max] | 0.045 " |
| Mounting Hole Diameter [Max] | 1.14 mm |
| Mounting Hole Diameter [Min] | 0.041 in |
| Mounting Hole Diameter [Min] | 1.04 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.041 in |
| Pin Size - Above Flange [diameter] | 1.04 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| 3000 | $ 0.21 | |||
Description
General part information
H2170 Series
PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia
