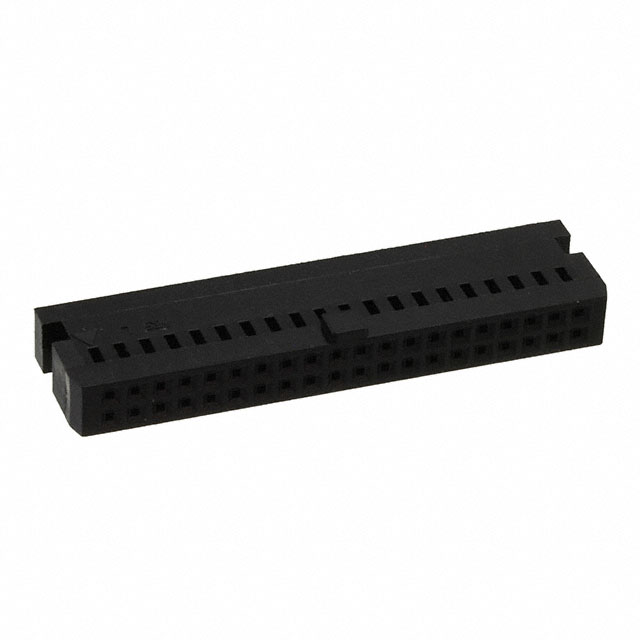

HIF3C-40D-2.54C

Obsolete

Hirose Electric USA, Inc.

CONN SOCKET HSG 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3C-40D-2.54C

Obsolete

Hirose Electric USA, Inc.

CONN SOCKET HSG 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3C-40D-2.54C

Color	Black
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

HIF3C Series

Part	Connector Type	Note	Number of Positions	Contact Type	Row Spacing [x]	Row Spacing	Mounting Type	Number of Rows	Fastening Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Number of Positions
Hirose Electric USA, Inc. HIF3C-6D-2.54C	Socket	Contacts Not Included	6	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-26D-2.54C	Socket	Contacts Not Included	26	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-40D-2.54C(03)	Socket	Contacts Not Included	40	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-40D-2.54C	Socket	Contacts Not Included	40	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-30D-2.54C(03)	Socket	Contacts Not Included	30	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-50D-2.54C	Socket	Contacts Not Included	50	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-50D-2.54C(03)	Socket	Contacts Not Included	50	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-16D-2.54C	Socket	Contacts Not Included		Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in	16
Hirose Electric USA, Inc. HIF3C-10D-2.54C	Socket	Contacts Not Included	10	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in
Hirose Electric USA, Inc. HIF3C-34D-2.54C	Socket	Contacts Not Included	34	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	2	Latch Holder	Crimp	Black	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HIF3C Series

40 Rectangular Connectors - Housings Socket Black 0.100" (2.54mm)
