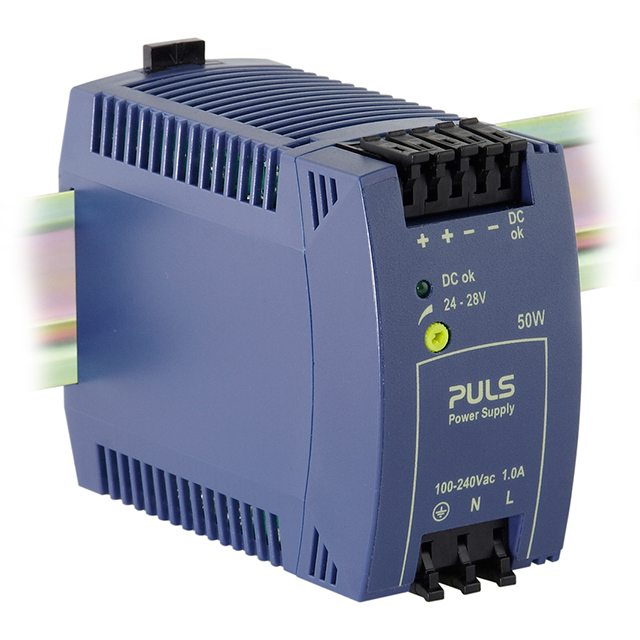

ML50.100

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 50W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	ML50.100

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	IEC, CSA, UL, NEC, SEMI, EAC, ABS, DNV GL
Current - Output (Max) [Max]	2.1 A
Efficiency	89 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	50 W
Size / Dimension [x]	3.58 in
Size / Dimension [x]	91 mm
Size / Dimension [y]	1.77 "
Size / Dimension [y]	45 mm
Size / Dimension [z]	2.95 "
Size / Dimension [z]	75 mm
Standard Number	F47, 60601, 60950-1, 61010-2-201, Class I Div 2, Class 2, 508
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Current - Output (Max) [Max]	Features	Number of Outputs	Input Type	Standard Number	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Voltage - Isolation	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number
PULS, LP ML50.109	2.1 A	Adjustable Output Conformal Coating Load Sharing Universal Input	1	AC	508 60950-1 61010-2-201 Class 2 Class I Div 2 F47	89 %	100 VAC	240 VAC	ITE (Commercial)	50 W	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	24 V
PULS, LP ML50.100	2.1 A	Adjustable Output Load Sharing Universal Input	1	AC	508 60601 60950-1 61010-2-201 Class 2 Class I Div 2 F47	89 %	85 VAC	264 VAC	ITE (Commercial)	50 W	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	24 V	500 V	ABS CSA DNV GL EAC IEC NEC SEMI UL	70 °C	0 °C
PULS, LP ML50.101	2.1 A	Adjustable Output Load Sharing Universal Input	1	AC		88.5 %	85 VAC	264 VAC	ITE (Commercial)	50 W	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	24 V	500 V	CSA EAC IEC NEC UL	70 °C	-10 °C
PULS, LP ML50.105	1.05 A	Adjustable Output Load Sharing Universal Input	1	AC	Class 2	90.3 %	85 VAC	264 VAC	ITE (Commercial)	50 W	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	48 V		EAC IEC NEC UL	70 °C	0 °C	508 60950.1 61010.201
PULS, LP ML50.102	4.2 A	Adjustable Output Load Sharing Universal Input	1	AC		90 %	85 VAC	264 VAC	ITE (Commercial)	50 W	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	12 V		CSA EAC IEC NEC UL	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 147.60

General part information

AC/DC DIN RAIL SUPPLY 24V 50W
