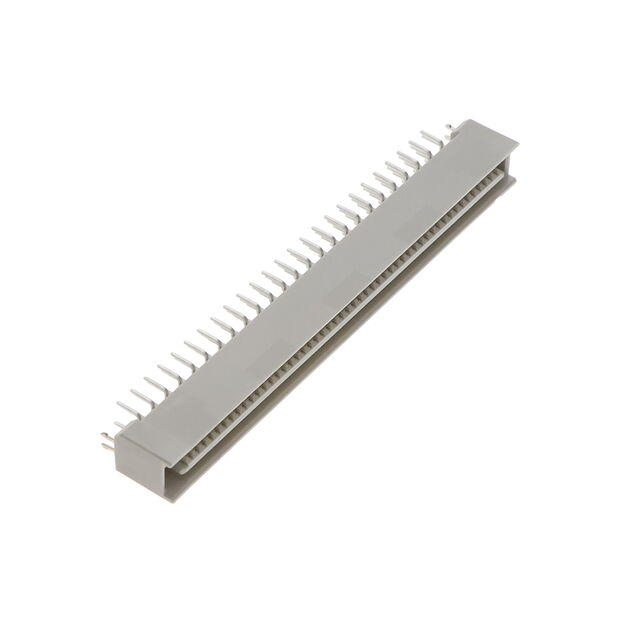

XH3A-0141-A
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 100POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XH3A-0141-A
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 100POS VERT GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XH3A-0141-A |
|---|---|
| Contact Finish | Gold |
| Height Above Board | 8.7 mm |
| Height Above Board | 0.343 in |
| Mated Stacking Heights | 15 mm, 13 mm, 16 mm, 12 mm |
| Mounting Type | Through Hole |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.08 | |
| 10 | $ 7.16 | |||
| 30 | $ 6.89 | |||
| 60 | $ 6.61 | |||
| 120 | $ 6.47 | |||
Description
General part information
XH3A Series
100 Position Connector Plug, Center Strip Contacts Through Hole Gold
