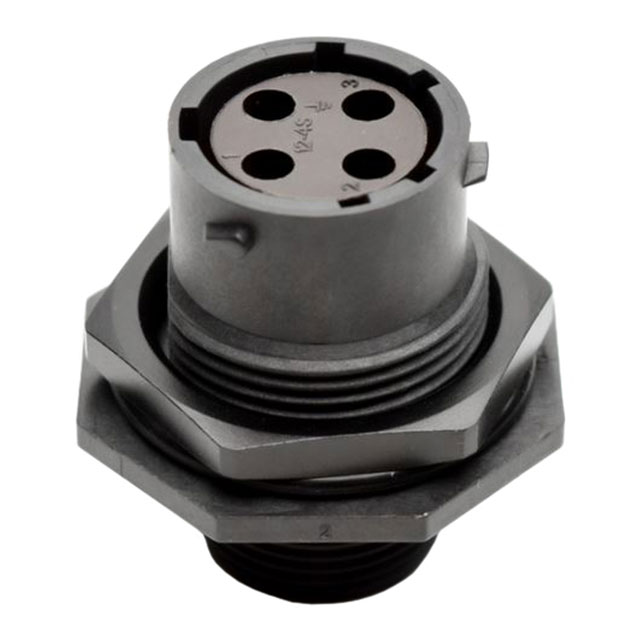

RTS712N4S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate-Family-Flyer-2019

RTS712N4S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS712N4S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	12-4
Shielding	Unshielded
Type	For Female Sockets

RTS712 Series

Part	Contact Size	Contact Shape	Number of Positions	Connector Type	Features	Fastening Type	Insert Material	Shell Size - Insert	Note	Contact Type	Material Flammability Rating	Shielding	Orientation	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mounting Feature	Type	Includes
Amphenol Sine Systems Corp RTS712N8PHEC03	16	Circular	8	Receptacle Housing	Backshell	Bayonet Lock	Thermoplastic	12-8	Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Male Pins	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal
Amphenol Sine Systems Corp RTS712N10P03	20	Circular	10	Receptacle Housing		Bayonet Lock	Thermoplastic		Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Male Pins	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RTS712N4S03	16	Circular	4	Receptacle Housing		Bayonet Lock	Thermoplastic	12-4	Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Female Sockets	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RTS712N3PHEC03	16	Circular		Receptacle Housing	Backshell	Bayonet Lock	Thermoplastic	12-3	Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Male Pins	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal
Amphenol Sine Systems Corp RTS712N3P03	16	Circular		Receptacle Housing		Bayonet Lock	Thermoplastic	12-3	Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Male Pins	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RTS712N8S03	16	Circular	8	Receptacle Housing		Bayonet Lock	Thermoplastic	12-8	Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Female Sockets	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RTS712N3S03	16	Circular		Receptacle Housing		Bayonet Lock	Thermoplastic	12-3	Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Female Sockets	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RTS712N10S03	20	Circular	10	Receptacle Housing		Bayonet Lock	Thermoplastic		Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Female Sockets	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RTS712N4P03	16	Circular	4	Receptacle Housing		Bayonet Lock	Thermoplastic	12-4	Contacts Not Included	Crimp	UL94 V-0	Unshielded	N	IP67 IP69K	125 °C	-40 °C	Black	Bulkhead - Front Side Nut	For Male Pins	1 Connector 1 Gasket 1 Nut 1 O-Ring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.08
		10	$ 8.04
		25	$ 7.73
		50	$ 7.43
		200	$ 7.26

Description

General part information

RTS712 Series

4 (3 + PE) Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Datasheet

ecomate-Family-Flyer-2019

Datasheet
