UF225(99)APA12-H1C2F

Active

Mechatronics Bearing Group

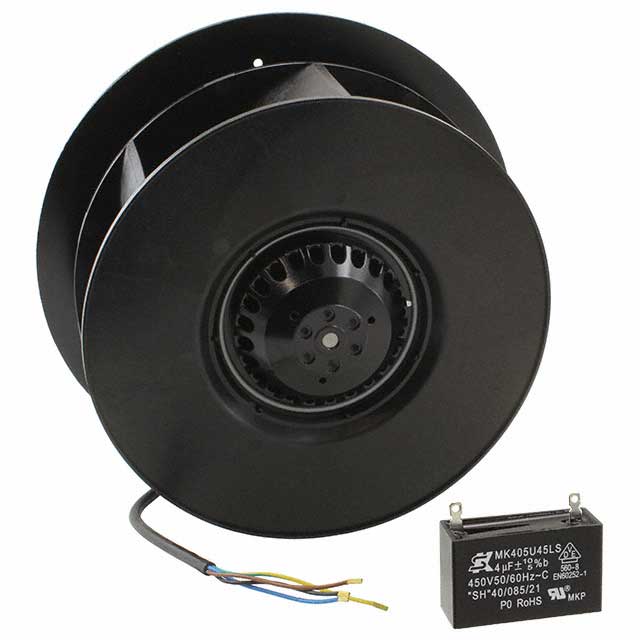

IMPELLER 225X99MM 115VAC RING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackward Curved Impellers Datasheet +1

UF225(99)APA12-H1C2F

Active

Mechatronics Bearing Group

IMPELLER 225X99MM 115VAC RING

Deep-Dive with AI

DocumentsBackward Curved Impellers Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF225(99)APA12-H1C2F

Air Flow	15.32 m³/min
Air Flow	547 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Aluminum
Noise	71 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	160 W
RPM	2950 RPM
Size / Dimension [diameter]	259 mm
Static Pressure	647.7 Pa
Static Pressure	2.6 in H2O
Termination	4 Wire Leads
Voltage - Rated	115 VAC
Weight [custom]	5.7 lbs
Weight [custom]	2.6 kg
Width [y]	117 mm

UF225 Series

Part	Fan Type	Size / Dimension [diameter]	Approval Agency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Weight [custom]	Weight [custom]	Width [y]	Voltage - Rated	Termination	Static Pressure	Static Pressure	Noise	Features	Material - Blade	RPM	Air Flow	Air Flow	Bearing Type	Weight	Weight	Current Rating (Amps)
Mechatronics Bearing Group UF225(99)APA12-H1C2F	Motorized Impellers	259 mm	CE cUL TUV UL	160 W	50 °C	-40 °C	-40 °C	50 °C	Aluminum	5.7 lbs	2.6 kg	117 mm	115 VAC	4 Wire Leads	647.7 Pa	2.6 in H2O	71 dB(A)	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Nylon Polyamide (PA)	2950 RPM	15.32 m³/min	547 CFM	Ball
Mechatronics Bearing Group UF225(99)APA12-H1C2A	Motorized Impellers	225 mm	CE cUL TUV UL	160 W	50 °C	-40 °C	-40 °C	50 °C	Aluminum			99 mm	115 VAC	4 Wire Leads	647.7 Pa	2.6 in H2O	71 dB(A)	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Nylon Polyamide (PA)	2950 RPM	21.56 m³/min	770 CFM	Ball	2.3 kg	5 lbs
Mechatronics Bearing Group UF225(85)APA23-H1C2A	Motorized Impellers	225 mm	CE cUL TUV UL	135 W	50 °C	-40 °C	-40 °C	50 °C	Aluminum			85 mm	230 VAC	4 Wire Leads	622.7 Pa	2.5 in H2O	75 dB(A)	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Nylon Polyamide (PA)	3000 RPM	19.04 m³/min	680 CFM	Ball	2.3 kg	5 lbs	600 mA
Mechatronics Bearing Group UF225(85)APA12-H1C2A	Motorized Impellers	225 mm	CE cUL TUV UL	135 W	50 °C	-40 °C	-40 °C	50 °C	Aluminum			85 mm	115 VAC	4 Wire Leads	622.7 Pa	2.5 in H2O	75 dB(A)	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Nylon Polyamide (PA)	3000 RPM	19.04 m³/min	680 CFM	Ball	2.3 kg	5 lbs	1.2 A
Mechatronics Bearing Group UF225(99)APA23-H1C2F	Motorized Impellers	259 mm	CE cUL TUV UL	157 W	50 °C	-40 °C	-40 °C	50 °C	Aluminum	5.7 lbs	2.6 kg	117 mm	230 VAC	4 Wire Leads	647.7 Pa	2.6 in H2O	71 dB(A)	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Nylon Polyamide (PA)	2950 RPM	15.32 m³/min	547 CFM	Ball			0.7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 143.34
		16	$ 128.82
		32	$ 127.01
		56	$ 118.84

Description

General part information

UF225 Series

Fan Motorized Impellers 115VAC Round - 259mm Dia Ball 547.0 CFM (15.32m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Backward Curved Impellers

Datasheet

AC Axial Part Numbering Guide

Datasheet
