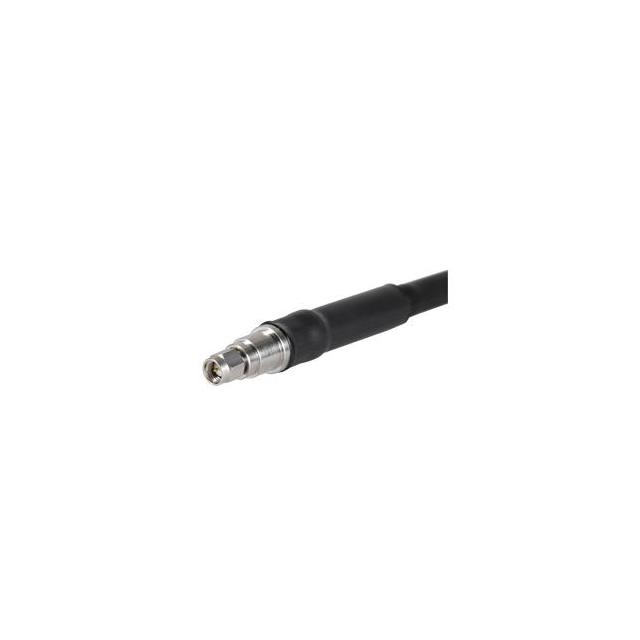

11_SMA-50-7-1/133_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_SMA-50-7-1/133_NE

Active

Huber+Suhner, Inc.

11_SMA-50-7-1/133_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_SMA-50-7-1/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-400
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

11_SMA-50 Series

Part	Impedance	Connector Type	Frequency - Max [Max]	Mating Cycles	Connector Style	Mounting Type	Housing Color	Contact Termination	Body Finish	Shield Termination	Body Material	Number of Ports	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Center Contact Material	Cable Group
Huber+Suhner, Inc. 11_SMA-50-3-16/-11_NH	50 Ohms	Male Pin Plug	26.5 GHz	500	SMA	Free Hanging (In-Line)	Gold	Crimp	Gold	Solder	Beryllium Copper	1	RG-141	-65 ░C	165 °C
Huber+Suhner, Inc. 11_SMA-50-2-112/133_NE	50 Ohms	Male Pin Plug	18 GHz	500	SMA	Free Hanging (In-Line)	Silver	Solder	White Bronze	Crimp	Brass	1	RD-316	-65 ░C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass
Huber+Suhner, Inc. 11_SMA-50-3-73/-99_NE
Huber+Suhner, Inc. 11_SMA-50-1-4/111_NE	50 Ohms	Male Pin Plug	18 GHz	500	SMA	Free Hanging (In-Line)	Gold	Solder	Gold	Crimp	Beryllium Copper	1	RG-178	-65 ░C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	196
Huber+Suhner, Inc. 11_SMA-50-7-1/133_NE	50 Ohms	Male Pin Plug	18 GHz	500	SMA	Free Hanging (In-Line)	Silver	Crimp	White Bronze	Clamp	Brass	1	LMR-400	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Bronze
Huber+Suhner, Inc. 11_SMA-50-3-236/133_NE	50 Ohms	Male Pin Plug	18 GHz	500	SMA	Free Hanging (In-Line)	Silver	Solder	White Bronze	Crimp	Brass	1	RG-400	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass
Huber+Suhner, Inc. 11_SMA-50-3-14/-11_NH	50 Ohms	Male Pin Plug	26.5 GHz	500	SMA	Free Hanging (In-Line)	Gold	Crimp	Gold	Solder	Beryllium Copper	1	RG-141	-65 ░C	165 °C		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_SMA-50-1-1/111_NE	50 Ohms	Male Pin Plug	18 GHz	500	SMA	Free Hanging (In-Line)	Gold	Solder	Gold	Solder	Beryllium Copper	1		-65 ░C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper
Huber+Suhner, Inc. 11_SMA-50-3-5/111_NH	50 Ohms	Male Pin Plug	18 GHz	500	SMA	Free Hanging (In-Line)	Gold	Solder	Gold	Crimp	Beryllium Copper	1	RG-58	-65 ░C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper
Huber+Suhner, Inc. 11_SMA-50-3-46/133_NE	50 Ohms	Male Pin Plug	18 GHz	500	SMA	Free Hanging (In-Line)	Silver	Solder	White Bronze	Crimp	Brass	1	RG-142	-65 ░C	165 °C	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	400

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.17

Description

General part information

11_SMA-50 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
