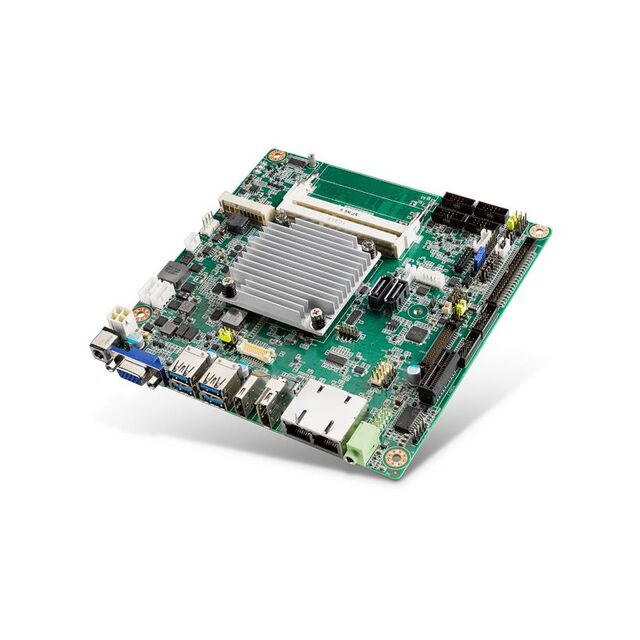

AIMB-217D-S6A2E
ActiveAdvantech Corp
SBC 1.1GHZ 4 CORE 8GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
AIMB-217D-S6A2E
ActiveAdvantech Corp
SBC 1.1GHZ 4 CORE 8GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-217D-S6A2E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Pentium N4200E |
| Ethernet | 1000 Mbps, 10 Mbps, 100 Mbps |
| Ethernet | RJ45 (2), GbE (2) |
| Expansion Site/Bus | PCIe, M.2, mPCIe |
| Form Factor | mini-ITX |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed [custom] | 8 GB |
| RAM Capacity/Installed [custom] | 0 GB |
| RS-232 (422, 485) | 6 |
| Size / Dimension [x] | 170 mm |
| Size / Dimension [x] | 6.693 " |
| Size / Dimension [y] | 170 mm |
| Size / Dimension [y] | 6.693 " |
| Speed | 1.1 GHz |
| Storage Interface | mSATA, SATA 3.0 |
| USB | USB 2.0, USB 3.0 |
| Video Outputs | HDMI, eDP, VGA, DP++, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 346.94 | |
Description
General part information
AIMB-217 Series
Single Board Computer 1.1GHz 4 Core 8GB/0GB RAM Intel Pentium N4200E
Documents
Technical documentation and resources
No documents available
