C1DXG-2036G

Active

CW Industries

IDC CABLE - CKR20G/AE20G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR20G/AE20G/X

Technical Specifications

Parameters and characteristics for this part

Specification	C1DXG-2036G

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Connector Type	Contact Finish	Shielding	Pitch - Connector	Pitch - Connector	Color	Features	Number of Rows	Cable Termination
CW Industries C1DXG-2036M	10 Áin	0.25 Ám	20	0.05 "	1.27 mm	3 ft	914.4 mm	Socket to Cable	Gold	Unshielded	0.1 in	2.54 mm	Multiple Ribbon	Polarizing Key Strain Relief	2	IDC
CW Industries C1DXG-2036G	10 Áin	0.25 Ám	20	0.05 "	1.27 mm	3 ft	914.4 mm	Socket to Cable	Gold	Unshielded	0.1 in	2.54 mm		Polarizing Key Strain Relief	2	IDC
CW Industries C1DXG-2636G	10 Áin	0.25 Ám	26	0.05 "	1.27 mm	3 ft	914.4 mm	Socket to Cable	Gold	Unshielded	0.1 in	2.54 mm		Polarizing Key Strain Relief	2	IDC
CW Industries C1DXG-2636M	10 Áin	0.25 Ám	26	0.05 "	1.27 mm	3 ft	914.4 mm	Socket to Cable	Gold	Unshielded	0.1 in	2.54 mm	Multiple Ribbon	Polarizing Key Strain Relief	2	IDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

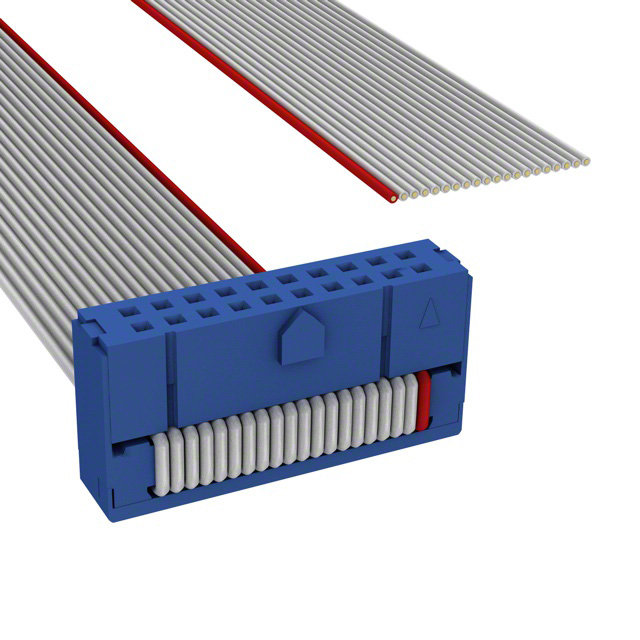

20 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
