SBCHE1510KJ
ActiveTE Connectivity Passive Product

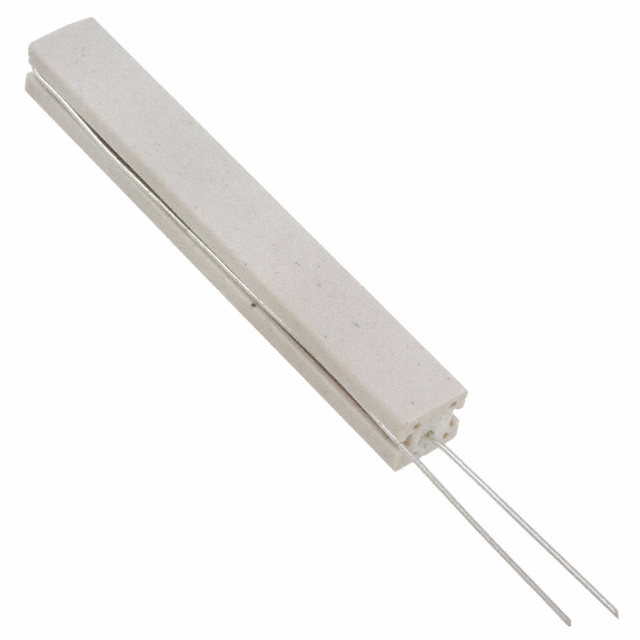

RES 10K OHM 5% 17W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
Documents1623729
SBCHE1510KJ
ActiveTE Connectivity Passive Product
RES 10K OHM 5% 17W AXIAL
Deep-Dive with AI
Documents1623729
Technical Specifications
Parameters and characteristics for this part
| Specification | SBCHE1510KJ |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial Formed, Axial |
| Power (Watts) | 17 W |
| Resistance | 10000 Ohms |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Size / Dimension [z] | 75 mm |
| Size / Dimension [z] | 2.953 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.30 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.07 | |||
| 50 | $ 1.01 | |||
| 100 | $ 0.84 | |||
| 300 | $ 0.76 | |||
| 500 | $ 0.74 | |||
Description
General part information
SBCHE15 Series
10 kOhms ±5% 17W Through Hole Resistor Axial, Radial Formed Flame Proof, Safety Wirewound
