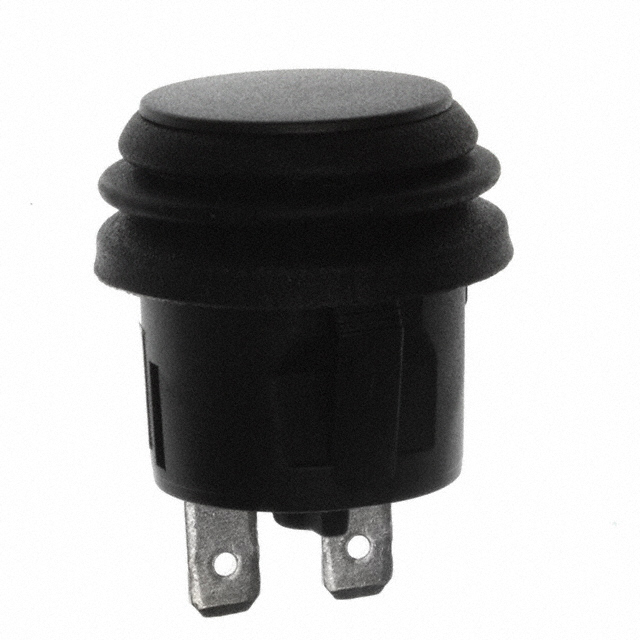

KFB2ANA1BBB
ActiveZF Electronics
SWITCH PUSH SPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
KFB2ANA1BBB
ActiveZF Electronics
SWITCH PUSH SPST 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KFB2ANA1BBB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 6000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.89 | |
| 10 | $ 1.70 | |||
| 25 | $ 1.60 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.46 | |||
| 300 | $ 1.39 | |||
| 600 | $ 1.36 | |||
Description
General part information
KFB2ANA1 Series
Pushbutton Switch SPST Standard Panel Mount, Snap-In
