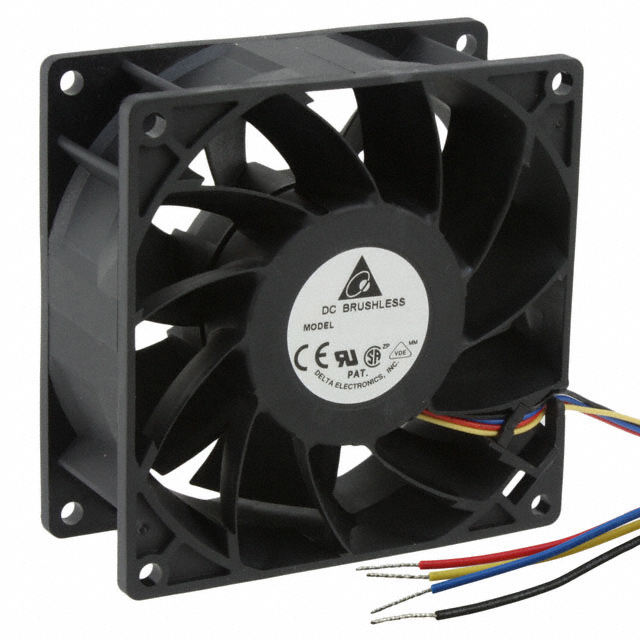

FFC0912DE-SP13

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	FFC0912DE-SP13

Air Flow	103.8 CFM
Air Flow	2.91 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	880 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10.56 W
RPM	5000 RPM
Static Pressure	0.681 in H2O
Static Pressure	169.6 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.408 lb
Weight	185.07 g
Width [y]	38 mm

Part	Current Rating (Amps)	Approval Agency	Noise	Lifetime @ Temp.	Bearing Type	Material - Frame	Material - Blade	Static Pressure	Static Pressure	Weight	Weight	Termination	Air Flow	Air Flow	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage - Rated	Features	Voltage Range [Max]	Voltage Range [Min]	RPM	Width [y]	Fan Type
Delta Electronics FFC0912DE-TP04	800 mA	CE CSA UL VDE	55 dB	70000 Hrs	Ball	Plastic	Plastic	165.6 Pa	0.665 in H2O	198 g	0.437 lb	4 Wire Leads	3.09 m³/min	110.2 CFM	9.6 W	-10 °C	-10 °C	60 °C	60 °C	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	13.2 VDC	7 V	4800 RPM	38 mm	Tubeaxial
Delta Electronics FFC0912DE-SP13	880 mA	CE CSA UL VDE	55 dB	70000 Hrs	Ball	Plastic	Plastic	169.6 Pa	0.681 in H2O	185.07 g	0.408 lb	4 Wire Leads	2.91 mł/min	103.8 CFM	10.56 W	-10 °C	-10 °C	60 °C	60 °C	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	13.2 VDC	7 V	5000 RPM	38 mm	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 103.8 CFM (2.91m³/min) 4 Wire Leads
