ATS-61310K-C1-R0

Active

Advanced Thermal Solutions Inc.

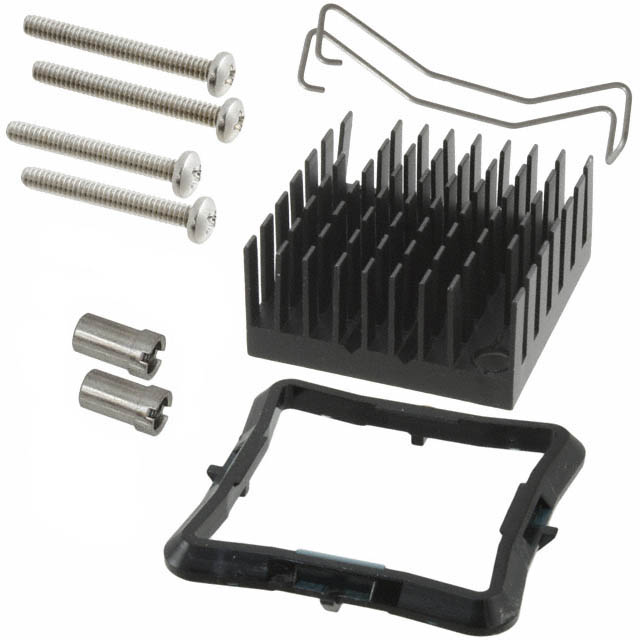

HEAT SINKS BGA FANSINK ASSEMBLY W/MAXIGRIP ATTACHMENT, 30.25X30.25X14.5MM, 30.25MM DIA.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-61310K-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS BGA FANSINK ASSEMBLY W/MAXIGRIP ATTACHMENT, 30.25X30.25X14.5MM, 30.25MM DIA.

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-61310K-C1-R0

Attachment Method	Clip, Thermal Material
Fin Height [z]	0.571 in
Fin Height [z]	14.5 mm
Length	1.22 in
Length	30.99 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 2.1 °C/W
Type	Top Mount

fansinktm Series

Heat Sinks BGA fanSINK Assembly w/maxiGRIP Attachment, 26.25x26.25x19.5mm, 26.25mm dia.

Part	Material	Width [x]	Width [x]	Material Finish	Type	Shape	Attachment Method	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Package Cooled	Width [y]	Width [y]	Length	Length	Fin Height	Fin Height	Width	Width	Length [x]	Length [x]
Advanced Thermal Solutions Inc. ATS-61400W-C2-R0	Aluminum	1.575 in	40 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	1.3 °C/W 200 LFM	24.5 mm	0.965 in	BGA
Advanced Thermal Solutions Inc. ATS-61375R-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material				BGA	1.476 in	37.5 mm	37.5 mm	1.476 in	0.768 in	19.5 mm
Advanced Thermal Solutions Inc. ATS-61300D-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	3 °C/W 200 LFM			BGA					0.374 in	9.5 mm	30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-61350D-C1-R0	Aluminum	1.378 in		Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2.6 °C/W 200 LFM			BGA					0.374 in	9.5 mm	35 mm		35 mm	1.378 in
Advanced Thermal Solutions Inc. ATS-61290W-C2-R0	Aluminum	1.142 in	29 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	1.8 °C/W	24.5 mm	0.965 in	BGA									29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-61330K-C1-R0	Aluminum	1.299 in	32.99 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2 °C/W 200 LFM	14.5 mm	0.571 in	BGA			32.99 mm	1.299 in
Advanced Thermal Solutions Inc. ATS-61330W-C2-R0	Aluminum	1.299 in	32.99 mm	Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material		24.5 mm	0.965 in	BGA			32.99 mm	1.299 in
Advanced Thermal Solutions Inc. ATS-61310K-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2.1 °C/W 200 LFM	14.5 mm	0.571 in	BGA			30.99 mm	1.22 in
Advanced Thermal Solutions Inc. ATS-61270K-C1-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	2.4 °C/W 200 LFM	14.5 mm	0.571 in	BGA	1.063 in	27 mm	27 mm	1.063 in
Advanced Thermal Solutions Inc. ATS-61375W-C2-R0	Aluminum			Black Anodized	Top Mount	Pin Fins Square	Clip Thermal Material	1.4 °C/W	24.5 mm	0.965 in	BGA	1.476 in	37.5 mm	37.5 mm	1.476 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.12
		10	$ 16.34
		25	$ 15.37
		50	$ 14.78
		100	$ 13.62
		300	$ 12.74
		500	$ 12.55
Sager	N/A	1	$ 18.85
		5	$ 17.59
		10	$ 17.03
		25	$ 15.99
		50	$ 15.08
		100	$ 14.07
		500	$ 13.71

Description

General part information

fansinktm Series

Heat Sinks BGA fanSINK Assembly w/maxiGRIP Attachment, 26.25x26.25x19.5mm, 26.25mm dia.
