109BD12MA2

Active

Sanyo Denki America Inc.

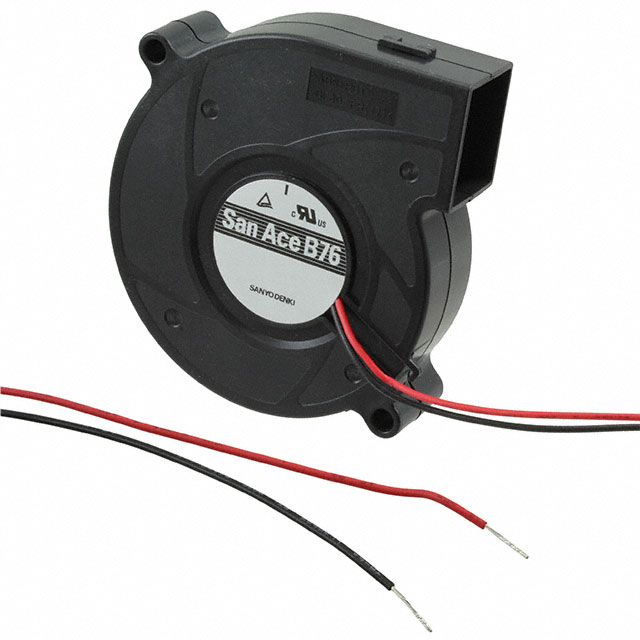

FAN BLOWER 76X30MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BD12MA2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109BD12MA2

Air Flow	8.8 CFM
Air Flow	0.246 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Blower
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	32.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.68 W
RPM	2100 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	76 mm
Size / Dimension [y]	75.5 mm
Static Pressure	58.8 Pa
Static Pressure	0.236 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.222 lb
Weight	100.7 g
Width [y]	30 mm

109BD12 Series

Part	Current Rating (Amps)	Weight	Weight	Material - Blade	Static Pressure	Static Pressure	Power (Watts)	Air Flow	Air Flow	Lifetime @ Temp.	RPM	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Fan Type	Termination	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Width [y]	Bearing Type	Noise	Features
Sanyo Denki America Inc. 109BD12MA2	140 mA	0.222 lb	100.7 g	Plastic	58.8 Pa	0.236 in H2O	1.68 W	8.8 CFM	0.246 mł/min	40000 Hrs	2100 RPM	10.2 VDC	13.8 VDC	Plastic	CSA TUV UL	-20 °C	70 °C	-20 C	70 °C	12 VDC	Blower	2 Wire Leads	75.5 mm	76 mm	Square/Rounded	30 mm	Ball	32.5 dB
Sanyo Denki America Inc. 109BD12MC2	140 mA	0.222 lb	100.7 g	Plastic	58.8 Pa	0.236 in H2O	1.68 W	8.8 CFM	0.246 mł/min	40000 Hrs	2100 RPM	10.2 VDC	13.8 VDC	Plastic	CSA TUV UL	-20 °C	70 °C	-20 C	70 °C	12 VDC	Blower	3 Wire Leads	75.5 mm	76 mm	Square/Rounded	30 mm	Ball	32.5 dB	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109BD12MD2	140 mA	0.222 lb	100.7 g	Plastic	58.8 Pa	0.236 in H2O	1.68 W	8.8 CFM	0.246 mł/min	40000 Hrs	2100 RPM	10.2 VDC	13.8 VDC	Plastic	CSA TUV UL	-20 °C	70 °C	-20 C	70 °C	12 VDC	Blower	3 Wire Leads	75.5 mm	76 mm	Square/Rounded	30 mm	Ball	32.5 dB	Locked Rotor Sensor
Sanyo Denki America Inc. 109BD12FD2	270 mA	0.222 lb	100.7 g	Plastic	98.1 Pa	0.394 in H2O	3.24 W	10.9 CFM	0.305 mł/min	40000 Hrs	2600 RPM	10.2 VDC	13.8 VDC	Plastic	CSA TUV UL	-20 °C	70 °C	-20 C	70 °C	12 VDC	Blower	3 Wire Leads	75.5 mm	76 mm	Square/Rounded	30 mm	Ball	37 dB	Locked Rotor Sensor
Sanyo Denki America Inc. 109BD12FA2	270 mA	0.222 lb	100.7 g	Plastic	98.1 Pa	0.394 in H2O	3.24 W	10.9 CFM	0.305 mł/min	40000 Hrs	2600 RPM	10.2 VDC	13.8 VDC	Plastic	CSA TUV UL	-20 °C	70 °C	-20 C	70 °C	12 VDC	Blower	2 Wire Leads	75.5 mm	76 mm	Square/Rounded	30 mm	Ball	37 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 46.95

Description

General part information

109BD12 Series

Fan Blower 12VDC Square/Rounded - 76mm L x 75.5mm H Ball 8.8 CFM (0.246mł/min) 2 Wire Leads
