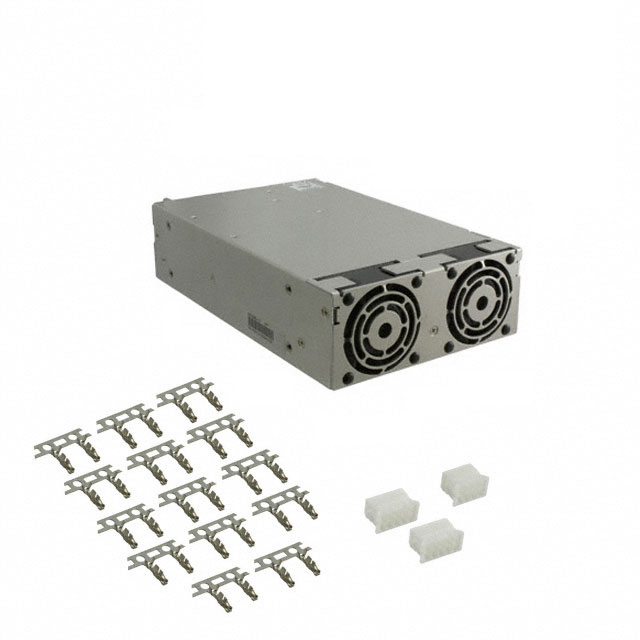

SWS1000L-60

Active

TDK-LAMBDA

SWITCHING POWER SUPPLIES 1020W 60V 17A MEDICAL, 115-230VAC

Search across all available documentation for this part.

Active

TDK-LAMBDA

SWITCHING POWER SUPPLIES 1020W 60V 17A MEDICAL, 115-230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	SWS1000L-60

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	17 A
Efficiency	86 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	1020 W
Size / Dimension [x]	240 mm
Size / Dimension [x]	9.45 "
Size / Dimension [y]	5.91 in
Size / Dimension [y]	150 mm
Size / Dimension [z]	61 mm
Size / Dimension [z]	2.4 in
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	60 V

Part	Type	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Voltage - Output 1	Applications	Efficiency	Current - Output 1	Features	Mounting Type	Number of Outputs
TDK-LAMBDA SWS1000L-3	Enclosed	CE cURus TUV	85 VAC	265 VAC	1 kW	240 mm	61 mm	2.4 in	9.45 "	5.91 in	150 mm	4000 V	3.3 V	Medical	77 %	200 A	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	1
TDK-LAMBDA SWS1000L-60	Enclosed	CE cURus TUV	85 VAC	265 VAC	1020 W	240 mm	61 mm	2.4 in	9.45 "	5.91 in	150 mm	4000 V	60 V	Medical	86 %	17 A	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	1
TDK-LAMBDA SWS1000L-36/CO2	Enclosed	CE	85 VAC	265 VAC	1044 W	240 mm	61 mm	2.4 in	9.45 "	5.91 in	150.1 mm	4000 V	36 V	ITE (Commercial)	86 %	29 A	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	Chassis Mount	1
TDK-LAMBDA SWS1000L-5	Enclosed	CE cURus TUV	85 VAC	265 VAC	1 kW	240 mm	61 mm	2.4 in	9.45 "	5.91 in	150 mm	4000 V	5 V	Medical	81 %	200 A	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	1
TDK-LAMBDA SWS1000L-12	Enclosed	CE cURus TUV	85 VAC	265 VAC	1 kW	240 mm	61 mm	2.4 in	9.45 "	5.91 in	150 mm	4000 V	12 V	Medical	84 %	88 A	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 60V 85 ~ 265 VAC Input
