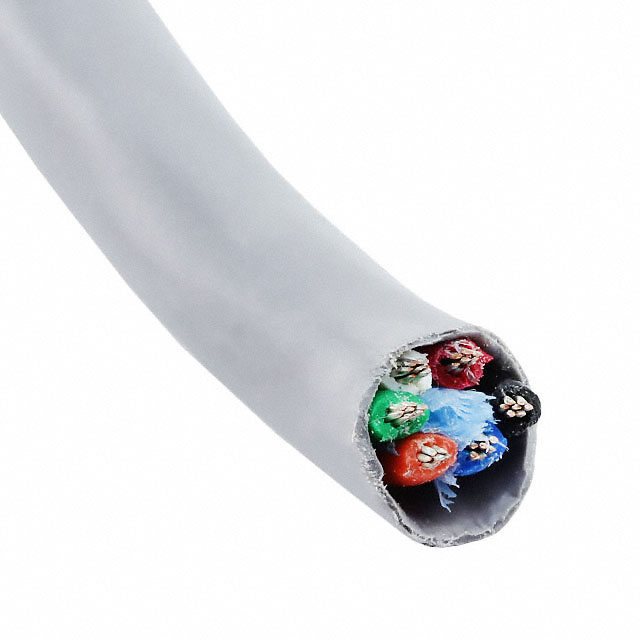

M33506 SL199

Active

ALPHA WIRE

CABLE 6COND 18AWG SLATE 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 18AWG SLATE 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M33506 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.32 mm
Jacket (Insulation) Diameter [diameter]	0.288 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2509
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Conductor Insulation	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Ratings	Voltage	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material
ALPHA WIRE M33506 SL199	914.4 m	3000 ft	Poly-Vinyl Chloride (PVC)	6	16	30 AWG	-20 C	80 C	Multi-Conductor	UL Style 2509	300 V	Poly-Vinyl Chloride (PVC)	18 AWG	7.32 mm	0.288 in	Slate	0.02 in	0.508 mm	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.53
Newark	1 Foot	25	$ 1.47

General part information

6 Conductor Multi-Conductor Cable Slate 18 AWG 3000' (914.4m)
