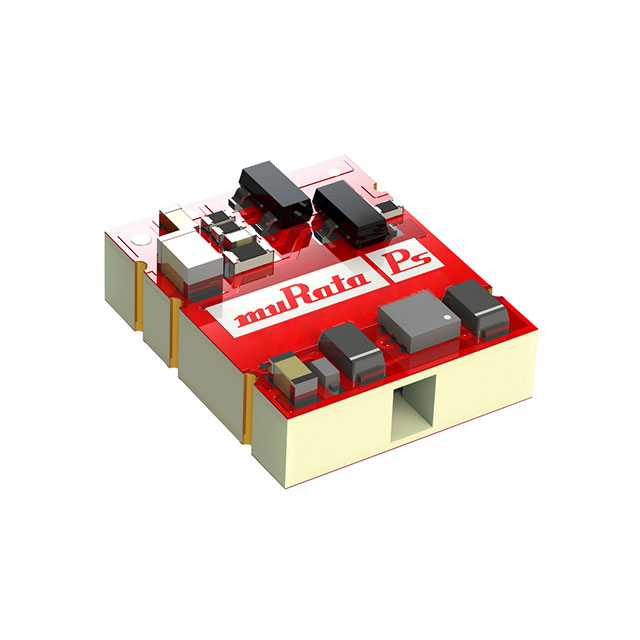

NXE2S1205MC-R13

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 2W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Power (Watts)	Package / Case	Package / Case [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Number of Outputs	Features	Voltage - Isolation	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Mounting Type	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. NXE2S1205MC-R13	400 mA	2 W	5 Leads	14-SMD Module	85 °C	-40 °C	77 %	1	SCP	3000 V	ITE (Commercial)	4.4 mm	10.4 mm	0.17 in	0.5 in	12.7 mm	0.4 in	5 V	Surface Mount	Isolated Module	10.8 V	13.2 V
Murata Power Solutions Inc. NXE2S1212MC-R7	167 mA	2 W	5 Leads	14-SMD Module	85 °C	-40 °C	76.5 %	1	SCP	3000 V	ITE (Commercial)	4.4 mm	10.4 mm	0.17 in	0.5 in	12.7 mm	0.4 in	12 V	Surface Mount	Isolated Module	10.8 V	13.2 V
Murata Power Solutions Inc. NXE2S1215MC-R7	133 mA	2 W	5 Leads	14-SMD Module	85 °C	-40 °C	79 %	1	SCP	3000 V	ITE (Commercial)	4.4 mm	10.4 mm	0.17 in	0.5 in	12.7 mm	0.4 in	15 V	Surface Mount	Isolated Module	10.8 V	13.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 400mA 10.8V - 13.2V Input
