LST1-01F04-3070-01

New Energy

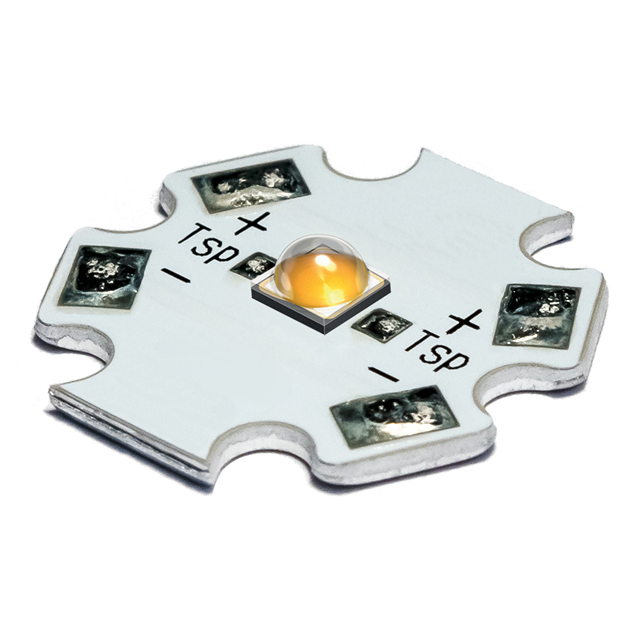

LED MOD OSLON WHT STARBRD 3000K

Search across all available documentation for this part.

New Energy

LED MOD OSLON WHT STARBRD 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	LST1-01F04-3070-01

Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max [Max]	1.8 A
Height [z]	1.7 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	150 lm/W
Luminous Flux @ Current/Temperature	300 lm
Size / Dimension [diameter]	19.89 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	3.2 V

Part	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Lens Type	CCT (K)	Color	Configuration	Current - Max [Max]	Height [z]	Type	Viewing Angle	Wavelength [Min]	Wavelength [Max]	Current - Test	Wavelength	Viewing Angle [custom]
New Energy LST1-01G03-5770-01	70	144 lm/W	19.89 mm	3.3 V	302 lm	Domed	5700 K	Cool White	Starboard	3 A	1.7 mm	LED Module
New Energy LST1-01G03-2795-01	95	87 lm/W	19.89 mm	3.1 V	167 lm	Domed	2700 K	Warm White	Starboard	3 A	1.7 mm	LED Module
New Energy LST1-01G08-UV01-01			19.89 mm	6.5 V	30 mW	Flat		UltraViolet	Starboard	800 mA	2.9 mm	LED Module	130 °	275 nm	280 nm	350 mA
New Energy LST1-01C48-5770-01	70	142 lm/W	19.89 mm	11.9 V	590 lm	Domed	5700 K	Cool White	Starboard	1.05 A		LED Module				350 mA
New Energy LST1-01F07-4070-01	70	130 lm/W	19.89 mm	3.2 V	130 lm	Domed	4000 K	Neutral White	Starboard	1.3 A	1.7 mm	LED Module				350 mA
New Energy LST1-01G01-UV02-00				3.4 V	1015 mW			Violet	Starboard			Chip On Board (COB)	130 °			500 mA	385 nm
New Energy LST1-01G01-UV01-00				3.6 V	875 mW			Violet	Starboard			Chip On Board (COB)	130 °			500 mA	365 nm
New Energy LST1-01F04-3070-01	70	150 lm/W	19.89 mm	3.2 V	300 lm	Domed		Warm White	Starboard	1.8 A	1.7 mm	LED Module
New Energy LST1-01F07-3070-01	70	130 lm/W	19.89 mm	3.2 V	130 lm	Domed		Warm White	Starboard	1.3 A	1.7 mm	LED Module				350 mA
New Energy LST1-01F09-IR04-00				2.75 V	970 mW	Domed			Starboard	1 A		LED Module				350 mA	940 nm	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module OSLON® Square White, Warm Starboard
