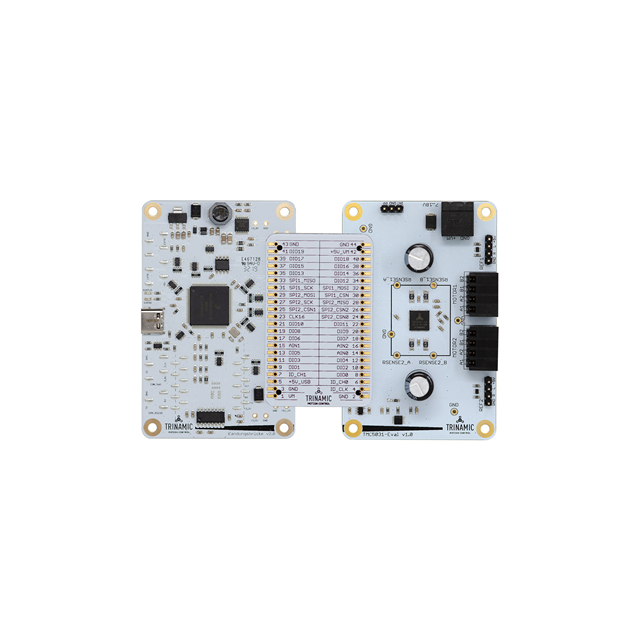

TMC5031-EVAL-KIT

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC5031

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC5031

Technical Specifications

Parameters and characteristics for this part

Specification	TMC5031-EVAL-KIT

Embedded	MCU, 32-Bit
Embedded	True
Primary Attributes	Motors (Stepper)
Secondary Attributes	Graphical User Interface (GUI)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	TMC5031

Part	Utilized IC / Part	Secondary Attributes	Primary Attributes	Embedded	Supplied Contents	Type	Package / Case	Motor Type - Stepper	Operating Temperature [Min]	Operating Temperature [Max]	Step Resolution [Max]	Step Resolution [Min]	Technology	Applications	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Mounting Type	Output Configuration	Function	Interface
Analog Devices Inc./Maxim Integrated TMC5031-EVAL-KIT	TMC5031	Graphical User Interface (GUI)	Motors (Stepper)	32-Bit MCU	Board(s)	Power Management
Analog Devices Inc./Maxim Integrated TMC5031-EVAL	TMC5031	Graphical User Interface (GUI)	Motors (Stepper)	32-Bit MCU	Board(s)	Power Management
Analog Devices Inc./Maxim Integrated TMC5031-LA							48-VFQFN Exposed Pad	Bipolar	-40 °C	125 ¯C	1	0.00390625	Power MOSFET	General Purpose	16 V	4.75 V	5 V	3.3 V	48-QFN (7x7)	Surface Mount	Half Bridge (8)	Driver - Fully Integrated Control and Power Stage	SPI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 133.24

General part information

TMC5031 Motor Controller/Driver, Stepper Power Management Evaluation Board

Technical documentation and resources

No documents available
