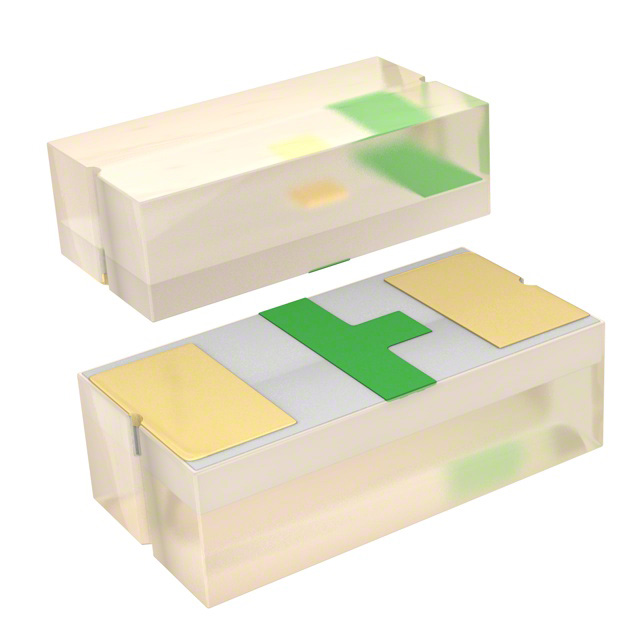

HSMW-J430
ActiveBroadcom Limited
LED WHITE SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMW-J430
ActiveBroadcom Limited
LED WHITE SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMW-J430 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 1822 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 1.2 mm |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| 10 | $ 0.89 | |||
| 100 | $ 0.66 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 1.40 | ||
| 10 | $ 0.89 | |||
| 100 | $ 0.66 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 2000 | $ 0.47 | ||
| 6000 | $ 0.46 | |||
| 10000 | $ 0.45 | |||
Description
General part information
HSMW Series
White LED Indication - Discrete 3.2V 2-SMD, J-Lead
