R191970071

Active

Radiall USA, Inc.

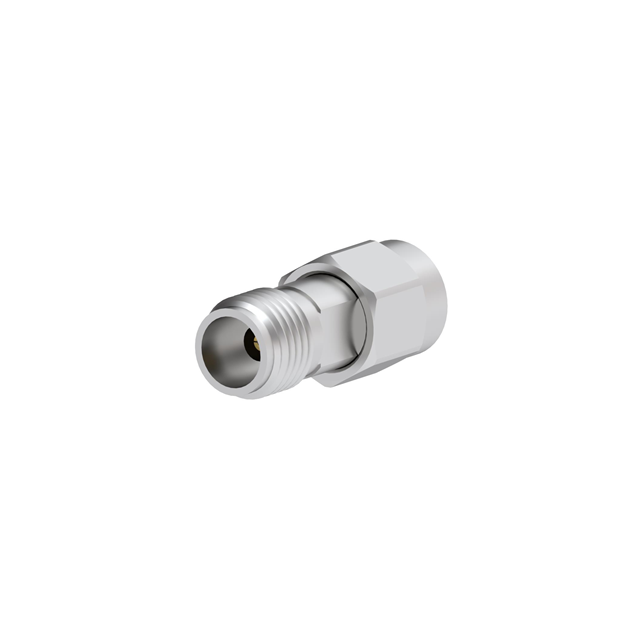

SMA 2.9 MALE - SMA 2.4 FEMALE ST

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R191970071

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Frequency - Max [Max]	46 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

R19197 Series

Part	Body Finish	Mating Cycles	Center Contact Plating	Center Gender	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Adapter Series	Frequency - Max [Max]	Convert From (Adapter End)	Mounting Type	Body Material	Center Contact Material	Impedance	Fastening Type	Style	Adapter Type	Conversion Type
Radiall USA, Inc. R191976020	White Bronze	5000	Gold	Female to Female	Polytetrafluoroethylene (PTFE)	165 °C	-55 °C	Female Socket RP-MCX Plug	SMA to RP-MCX	6000 MHz	Female Socket SMA Jack	Free Hanging (In-Line)	Brass	Beryllium Copper	50 Ohms	Snap-On Threaded	Straight	Plug to Jack	Between Series
Radiall USA, Inc. R191970091		500	Gold	Female to Female	Polyetherimide (PEI)	165 °C	-65 ░C	Female Socket SMA Jack	SMA to SMA	46 GHz	Female Socket SMA Jack	Free Hanging (In-Line)	Stainless Steel	Beryllium Copper	50 Ohms		Straight	Jack to Jack	Same Series
Radiall USA, Inc. R191970061		500	Gold	Male to Male		165 °C	-65 ░C	Male Pin SMA Plug	SMA to SMA	46 GHz	SMA Plug Male Pin	Free Hanging (In-Line)	Stainless Steel	Beryllium Copper	50 Ohms		Straight	Plug to Plug	Same Series
Radiall USA, Inc. R191970071		500	Gold			165 °C	-65 ░C	Female Socket SMA Jack	SMA to SMA	46 GHz	SMA Plug Male Pin	Free Hanging (In-Line)	Stainless Steel	Beryllium Copper	50 Ohms		Straight	Plug to Jack	Same Series
Radiall USA, Inc. R191970081		500	Gold			165 °C	-65 ░C	Male Pin SMA Plug	SMA to SMA	46 GHz	Female Socket SMA Jack	Free Hanging (In-Line)	Stainless Steel	Beryllium Copper	50 Ohms		Straight	Plug to Jack	Same Series
Radiall USA, Inc. R191977020	Nickel	500	Gold		Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Female Socket RP-MCX Plug	SMA to RP-MCX	6000 MHz	SMA Plug Male Pin	Free Hanging (In-Line)	Brass	Beryllium Copper	50 Ohms	Snap-On Threaded	Straight	Plug to Plug	Between Series

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 321.60

Description

General part information

R19197 Series

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
