09140073101

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 7 CONTACTS, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 7 CONTACTS, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09140073101

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han® D, Han® C
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	3+4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	600 V

Part	Gender	Number of Positions	Contact Type	Termination Style	Housing Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material Flammability Rating	Connector Type
HARTING Technology Group 09140073001	Male	3+4	Han® C Han® D	Crimp	Polycarbonate (PC)	600 V	125 °C	-40 °C	Gray	UL94 V-0	Module without Contacts
HARTING Technology Group 09140073101	Female	3+4	Han® C Han® D	Crimp	Polycarbonate (PC)	600 V	125 °C	-40 °C	Gray	UL94 V-0	Module without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

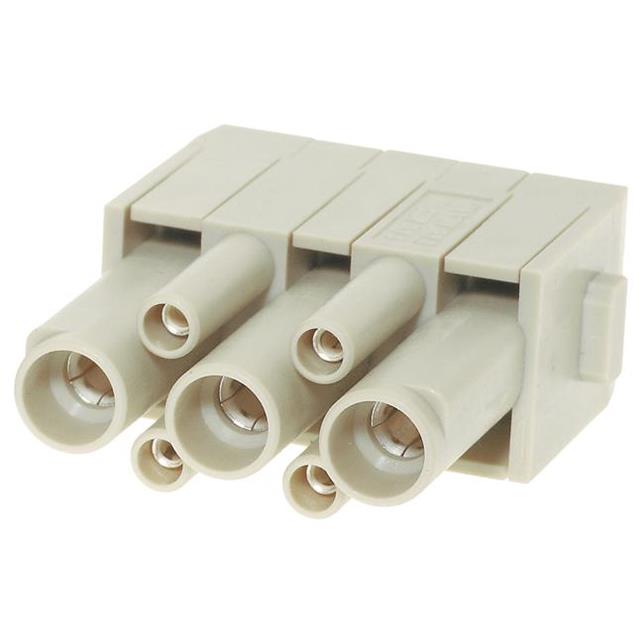

The 09140073101 from Harting is a Han-Modular® female module.
