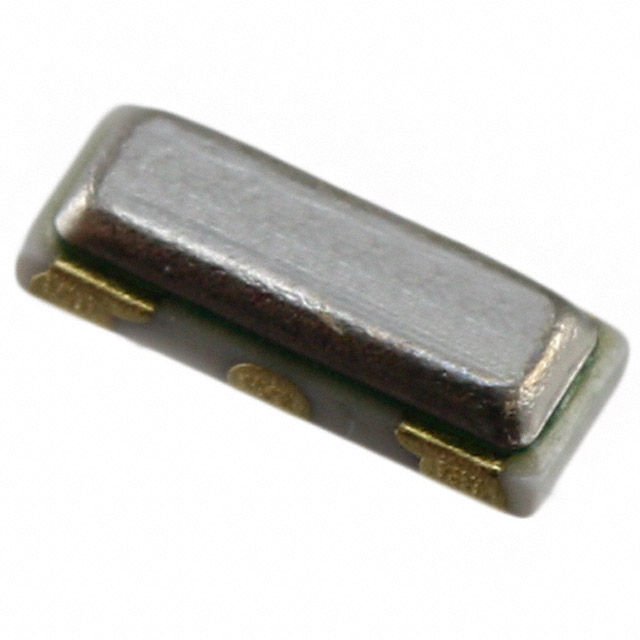

CSTCE8M00G52-R0

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 8.0000MHZ 10PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CSTCE8M00G52-R0

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 8.0000MHZ 10PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSTCE8M00G52-R0

Capacitance	10 pF
Features	Built in Capacitor
Frequency	8 MHz
Frequency Tolerance	0.5 %
Height [z]	0.031 "
Height [z]	0.79 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.051 "
Size / Dimension [y]	1.3 mm
Type	Ceramic

CSTCE Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Height [z]	Height [z]	Package / Case	Frequency Stability	Operating Temperature [Max]	Operating Temperature [Min]	Features	Frequency Tolerance	Type	Frequency	Capacitance	Impedance
Murata Power Solutions Inc. CSTCE8M00GH5L99-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.039 in	1 mm	3-SMD Non-Standard	0.07 %	70 °C	0 °C	Built in Capacitor	0.5 %	Ceramic	8 MHz	33 pF
Murata Power Solutions Inc. CSTCE19M6V53C-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	3-SMD Non-Standard
Murata Power Solutions Inc. CSTCE10M0G15L99-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.047 in	1.19 mm	3-SMD Non-Standard
Murata Power Solutions Inc. CSTCE9M00G55-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	3-SMD Non-Standard
Murata Power Solutions Inc. CSTCE12M8V53-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	3-SMD Non-Standard
Murata Power Solutions Inc. CSTCE8M00G52-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	1206 (3216 Metric)		80 C	-20 C	Built in Capacitor	0.5 %	Ceramic	8 MHz	10 pF
Murata Power Solutions Inc. CSTCE11M0G55A-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	3-SMD Non-Standard
Murata Power Solutions Inc. CSTCE9M83G52-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	3-SMD Non-Standard
Murata Power Solutions Inc. CSTCE8M00G52Z-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	1206 (3216 Metric)		125 °C	-40 °C	Built in Capacitor	0.5 %	Ceramic	8 MHz	10 pF	40 Ohms
Murata Power Solutions Inc. CSTCE8M00G15L99-R0	0.051 "	3.2 mm	1.3 mm	0.126 in	Surface Mount	0.031 "	0.79 mm	3-SMD Non-Standard	0.08 %	70 °C	0 °C	Built in Capacitor	0.1 %	Ceramic	8 MHz	33 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CSTCE Series

8 MHz Ceramic Resonator Built in Capacitor 10 pF ±0.2% -20°C ~ 80°C Surface Mount
