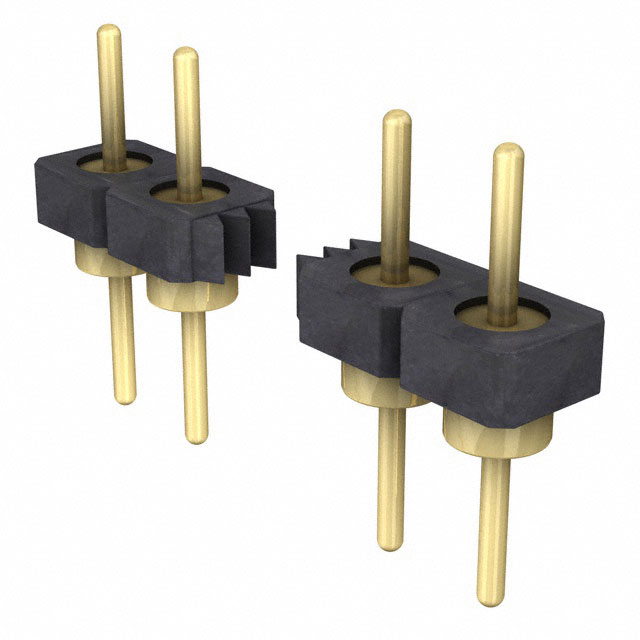

BBL-110-G-F

Active

Samtec Inc.

STACKING CONN, HDR, 10POS, 1ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BBx, BDL, BHS Series Datasheet

BBL-110-G-F

Active

Samtec Inc.

STACKING CONN, HDR, 10POS, 1ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet BBx, BDL, BHS Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBL-110-G-F

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.085 "
Insulation Height	2.15 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.43 mm
Overall Contact Length	0.332 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

BBL-110 Series

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Insulation Material	Connector Type	Fastening Type	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows	Termination	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Contact Type	Overall Contact Length
Samtec Inc. BBL-110-G-F	0.122 in	3.1 mm	3.18 mm	0.125 in	Unshrouded	Liquid Crystal Polymer (LCP)	Header	Push-Pull	Through Hole	0.1 in	2.54 mm	1	Solder	Black	8.43 mm	0.332 in	Gold	Nickel	All	1.27 µm	50 µin	-55 °C	125 °C	0.51 µm	20 µin	0.085 "	2.15 mm	10	Circular	Male Pin
Samtec Inc. BBL-110-T-F	0.122 in	3.1 mm	3.18 mm	0.125 in	Unshrouded	Liquid Crystal Polymer (LCP)	Header	Push-Pull	Through Hole	0.1 in	2.54 mm	1	Solder	Black	8.43 mm	0.332 in		Nickel	All	1.27 µm	50 µin	-55 °C	125 °C			0.085 "	2.15 mm	10	Circular	Male Pin
Samtec Inc. BBL-110-G-E			3.18 mm	0.125 in	Unshrouded	Liquid Crystal Polymer (LCP)	Header	Push-Pull	Through Hole	0.1 in	2.54 mm	1	Solder	Black		7.62 mm	Gold	Nickel	All	1.27 µm	50 µin	-55 °C	125 °C	0.51 µm	20 µin	0.07 in	1.78 mm	10	Circular	Male Pin	0.3 in
Samtec Inc. BBL-110-T-E			3.18 mm	0.125 in	Unshrouded	Liquid Crystal Polymer (LCP)	Header	Push-Pull	Through Hole	0.1 in	2.54 mm	1	Solder	Black		7.62 mm		Nickel	All	1.27 µm	50 µin	-55 °C	125 °C			0.07 in	1.78 mm	10	Circular	Male Pin	0.3 in
