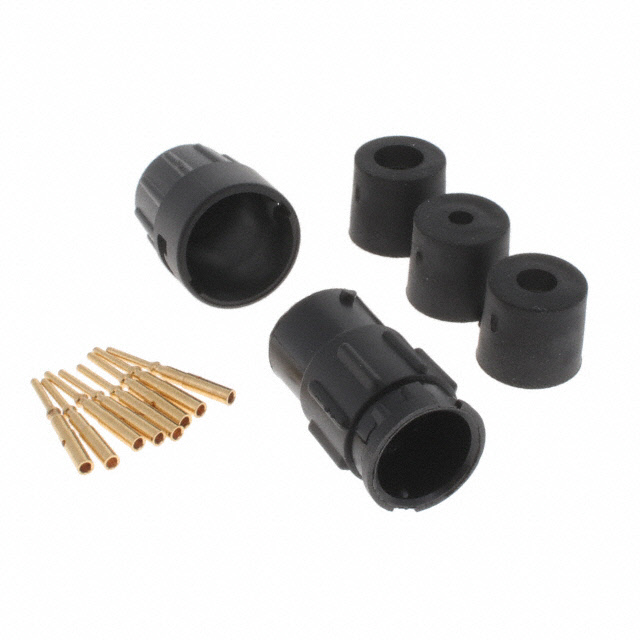

8280-8PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-8PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8280-8PG-3DC

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

8280-8PG Series

Part	Connector Type	Primary Material	Voltage Rating	Applications	Fastening Type	Orientation	Shielding	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination	Current Rating (Amps)	Color	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Contact Material	Mounting Type	Backshell Material, Plating	Features	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8280-8PG-522	Male Pins Receptacle	Plastic	600 V	Automotive Communication Systems Instrumentation	Bayonet Lock	Keyed	Unshielded	Weathertight	-40 °C	115 °C	Gold	Crimp	Varies by Wire Gauge	Black	6.35 mm	0.25 in	0.22 in	5.59 mm	Brass	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	8
Conxall/Switchcraft 8280-8PG-321	Male Pins Receptacle	Plastic	600 V	Automotive Communication Systems Instrumentation	Bayonet Lock	Keyed	Unshielded	Weathertight	-40 °C	115 °C	Gold	Crimp	Varies by Wire Gauge	Black		0.23 in	0.21 in	5.33 mm	Brass	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	8	5.84 mm
Conxall/Switchcraft 8280-8PG-3DC	Male Pins Receptacle	Plastic	600 V	Automotive Communication Systems Instrumentation	Bayonet Lock	Keyed	Unshielded	Weathertight	-40 °C	115 °C	Gold	Crimp	Varies by Wire Gauge	Black					Brass	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	8
Conxall/Switchcraft 8280-8PG-315	Male Pins Receptacle	Plastic	600 V	Automotive Communication Systems Instrumentation	Bayonet Lock	Keyed	Unshielded	Weathertight	-40 °C	115 °C	Gold	Crimp	Varies by Wire Gauge	Black					Brass	Free Hanging (In-Line)	Nylon Polyamide (PA)	Backshell	8		0.15 in 0.17 in	3.81 mm 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.51
		10	$ 7.55
		25	$ 7.26
		50	$ 6.97
		100	$ 6.81

Description

General part information

8280-8PG Series

8 Position Circular Connector Receptacle, Male Pins Crimp
