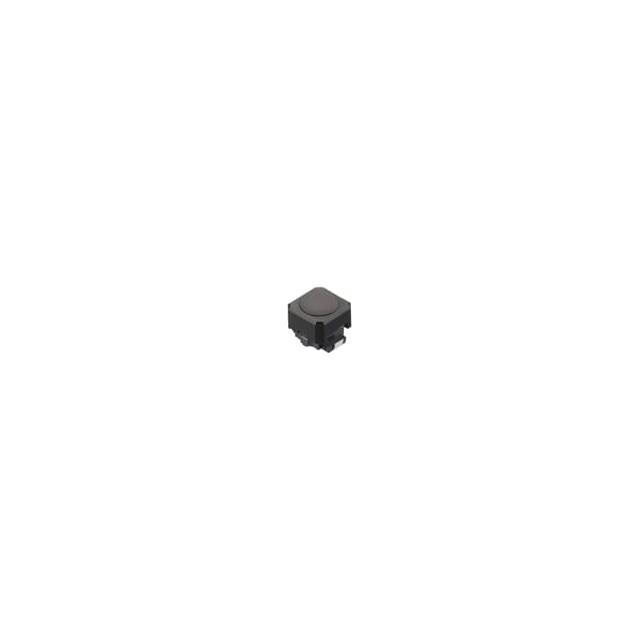

SKPSAEE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 16V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 16V

Technical Specifications

Parameters and characteristics for this part

Specification	SKPSAEE010

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 16 VDC
Illumination	Non-Illuminated
Mechanical Life	300000 Cycles
Mounting Type	Surface Mount
Operating Force	255 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Switch Function	Off-Mom
Switch Travel	1.05 mm
Termination Style	J Lead

Part	Actuator Type	Actuator Orientation	Mechanical Life	Contact Rating @ Voltage	Illumination	Circuit	Operating Force	Termination Style	Switch Travel	Mounting Type	Actuator Height off PCB, Vertical	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]
Alps Alpine SKPSAEE010	Standard	Top Actuated	300000 Cycles	0.05 A 16 VDC	Non-Illuminated	SPST-NO	255 gf	J Lead	1.05 mm	Surface Mount	5 mm	Off-Mom	90 °C	-40 °C
Alps Alpine SKPSAAE010	Standard	Top Actuated	300000 Cycles	0.05 A 16 VDC	Non-Illuminated	SPST-NO	367 gf	J Lead	1.05 mm	Surface Mount	5 mm	Off-Mom	90 °C	-40 °C	6.6 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
