19397060445

Active

HARTING Technology Group

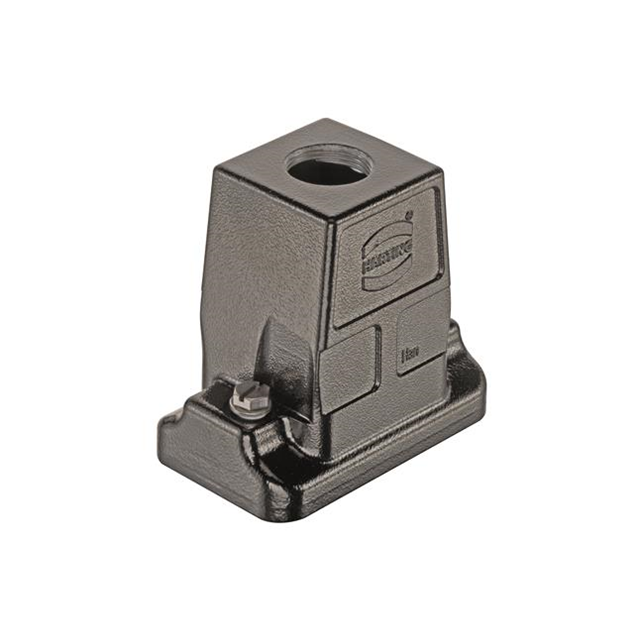

HAN 6 HP DIRECT M HOOD, TOP ENTRY, M20

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 6 HP DIRECT M HOOD, TOP ENTRY, M20

Technical Specifications

Parameters and characteristics for this part

Specification	19397060445

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.661 inches
Size / Dimension [x]	93 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.543 in
Style	Top Entry
Thread Size	M20

Part	Style	Size	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Housing Color	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Connector Type	Housing Finish	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19397060445	Top Entry	6B	2.244 "	57 mm	3.661 inches	90 mm	3.543 in	93 mm	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Black	M20	125 °C	-40 °C	Aluminum Die Cast	Hood	Powder Coated	Screw Locks on Hood
HARTING Technology Group 19397060547	Side Entry	6B		2.244 "		3.583 in		3.661 in	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Black	M32	125 °C	-40 °C	Aluminum Die Cast	Hood	Powder Coated	Screw Locks on Hood	93 mm	57 mm	91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M20 6B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
