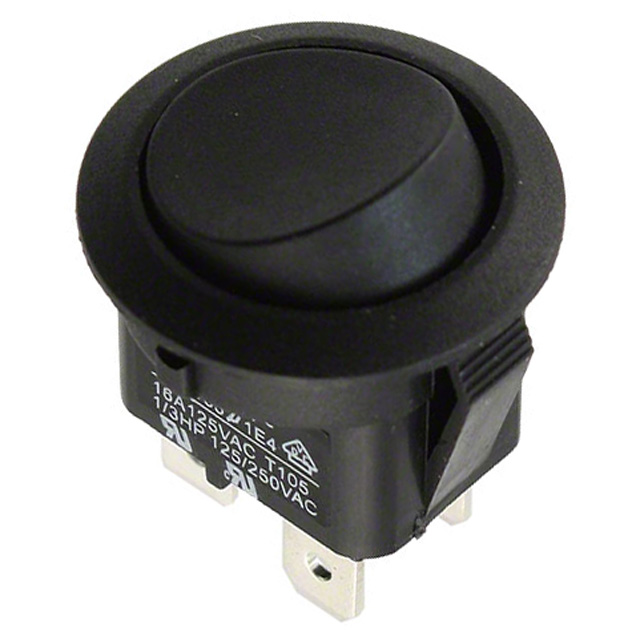

RR812C1100
ActiveE-Switch
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RR812C1100
ActiveE-Switch
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RR812C1100 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round |
| Approval Agency | UL, cUL |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
RR812C1 Series
| Part | Circuit | Electrical Life | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Actuator Marking | Approval Agency | Color - Actuator/Cap | Voltage Rating - AC | Switch Function | Termination Style | Mounting Type | Features | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | DPST | 10000 Cycles | 16 A | -20 C | 105 ░C | Round | O - | cUL UL | Black | 125 V | On-Off | Quick Connect - 0.187" (4.7mm) | Panel Mount Snap-In | |||
E-Switch | DPST | 10000 Cycles | 16 A | -20 C | 105 ░C | Round | O - | cUL UL | Black | 125 V | On-Off | Quick Connect - 0.187" (4.7mm) | Panel Mount Snap-In | Sealing Boot | ||
E-Switch | DPST | 10000 Cycles | 16 A | -20 C | 105 ░C | Round | No Marking | cUL UL | Black | 125 V | On-Off | Quick Connect - 0.187" (4.7mm) | Panel Mount Snap-In | |||
E-Switch | DPST | 10000 Cycles | 16 A | -20 C | 105 ░C | Round - Illuminated | O - | cUL UL | White | 125 V | On-Off | Quick Connect - 0.187" (4.7mm) | Panel Mount Snap-In | Neon Red | 250 VAC | |
E-Switch | DPST | 10000 Cycles | 16 A | -20 C | 105 ░C | Round - Illuminated | No Marking | cUL UL | Black | 125 V | On-Off | Quick Connect - 0.187" (4.7mm) | Panel Mount Snap-In | Neon Red | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.78 | |
Description
General part information
RR812C1 Series
Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
