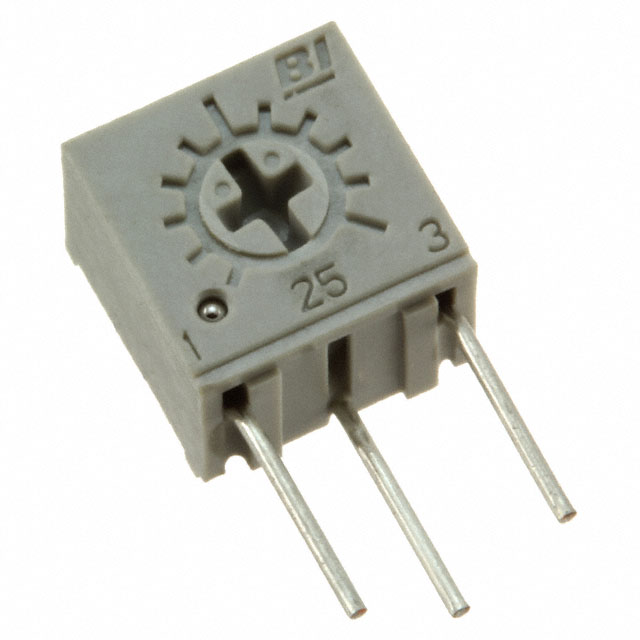

25SR10KLF
ActiveTT Electronics/BI
TRIMMER 10K OHM 0.5W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
25SR10KLF
ActiveTT Electronics/BI
TRIMMER 10K OHM 0.5W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 25SR10KLF |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 10000 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 0.27 in |
| Size / Dimension [x] | 6.86 mm |
| Size / Dimension [y] | 6.86 mm |
| Size / Dimension [y] | 0.27 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.67 | |
| 10 | $ 1.46 | |||
| 25 | $ 1.31 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.21 | |||
| 250 | $ 1.16 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.91 | |||
| 5000 | $ 0.76 | |||
Description
General part information
25SR Series
10 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
