HSD-04F-S-PT-SG-C1-TR
ActiveAdam Tech
CONN FAKRA HIGH SPEED DATA 4POS
Deep-Dive with AI
Search across all available documentation for this part.

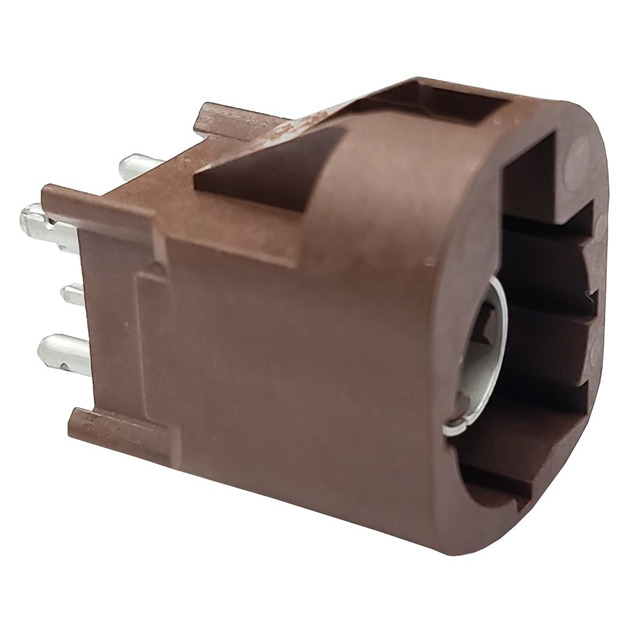

HSD-04F-S-PT-SG-C1-TR
ActiveAdam Tech
CONN FAKRA HIGH SPEED DATA 4POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSD-04F-S-PT-SG-C1-TR |
|---|---|
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Latch Lock |
| Features | Code F |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Brown |
| Impedance | 100 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Reel® | 1 | $ 3.00 | |
| 10 | $ 2.44 | |||
| 25 | $ 2.25 | |||
| 50 | $ 2.12 | |||
| Tape & Reel (TR) | 100 | $ 1.99 | ||
Description
General part information
HSD-04F Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
