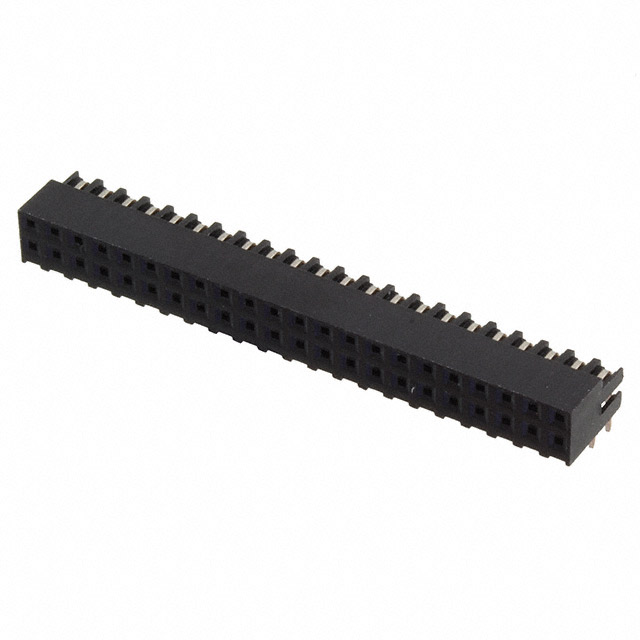

A3-44DA-2DS(71)

Active

Hirose Electric USA, Inc.

CONN RCPT 44P 0.079 GOLD PCB R/A

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 44P 0.079 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	A3-44DA-2DS(71)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.65 mm
Insulation Height	0.183 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Style	Insulation Color	Number of Positions Loaded	Contact Shape	Number of Rows	Contact Material	Material Flammability Rating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Termination	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Applications
Hirose Electric USA, Inc. A3-44DA-2DS(71)	Board to Board Cable	Black	All	Square	2	Phosphor Bronze	UL94 V-0	Receptacle	0.079 in	2 mm	2.5 mm	0.098 in	85 °C	-55 °C	Female Socket	Solder	4.65 mm	0.183 in	Nylon Polyamide (PA)	Push-Pull	0.203 Ám	8 Áin	44	0.079 in	2 mm	1 çm	39.4 çin	Gold	Through Hole Right Angle	Tin	General Purpose Telecommunications

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
