AOZ8804ADI

Active

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 16.5VC 10DFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 16.5VC 10DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ8804ADI

Applications	HDMI, Ethernet
Capacitance @ Frequency	0.6 pF
Current - Peak Pulse (10/1000µs)	12 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

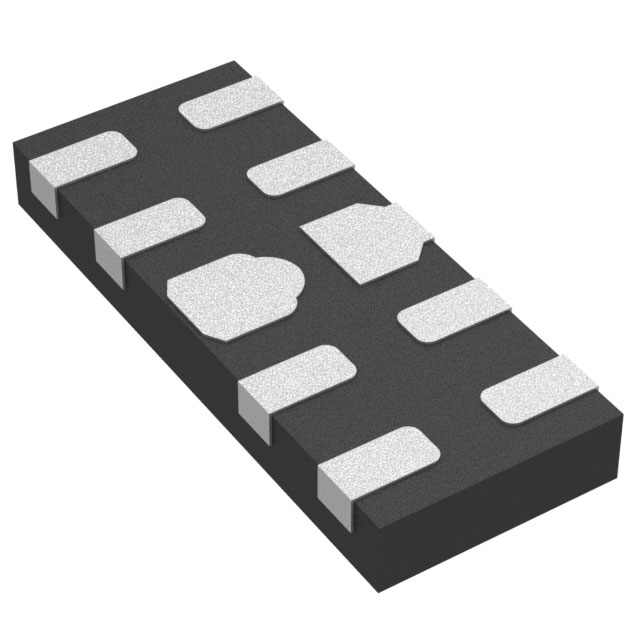

Package / Case	10-UFDFN
Power Line Protection	True
Supplier Device Package	10-DFN (2.5x1)
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	16.5 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Reverse Standoff (Typ)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Type	Applications	Power Line Protection	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Capacitance @ Frequency	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]
Alpha & Omega Semiconductor Inc. AOZ8804ADI	5 V	Surface Mount	-40 °C	125 ¯C	10-DFN (2.5x1)	Steering	Ethernet HDMI		12 A	16.5 V	10-UFDFN	0.6 pF	4	6 V
