65-00-GEL30-0010

Active

Parker Chomerics

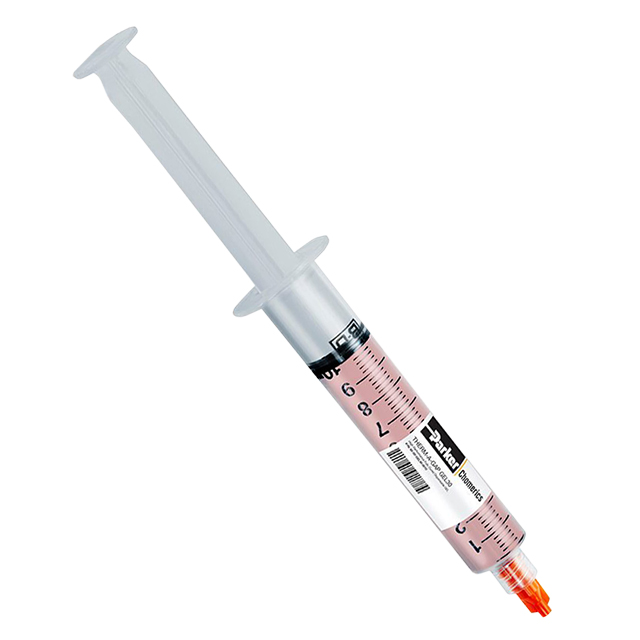

THERM-A-GAP GEL30 3.5W/M-K 10CC

Search across all available documentation for this part.

Active

Parker Chomerics

THERM-A-GAP GEL30 3.5W/M-K 10CC

Technical Specifications

Parameters and characteristics for this part

Specification	65-00-GEL30-0010

Color	Pink
Features	Low Outgassing (ASTM E595)
Material Flammability Rating	UL94 V-0
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Size / Dimension	10cc Syringe
Thermal Conductivity	3.5 W/m-K
Type	Silicone Gel
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Min]	-55 °C
Usable Temperature Range [Min]	-67 °F

Part	Usable Temperature Range [Max]	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Shelf Life	Size / Dimension [custom]	Material Flammability Rating	Color	Shelf Life Start	Features	Type	Thermal Conductivity	Size / Dimension
Parker Chomerics 65-00-GEL30-0300	200 °C	200 °C	-55 °C	-67 °F	18 Months	300 cc	UL94 V-0	Pink	Date of Manufacture	Low Outgassing (ASTM E595)	Silicone Gel	3.5 W/m-K
Parker Chomerics 65-00-GEL30-0010	200 °C	200 °C	-55 °C	-67 °F	18 Months		UL94 V-0	Pink	Date of Manufacture	Low Outgassing (ASTM E595)	Silicone Gel	3.5 W/m-K	10cc Syringe

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
