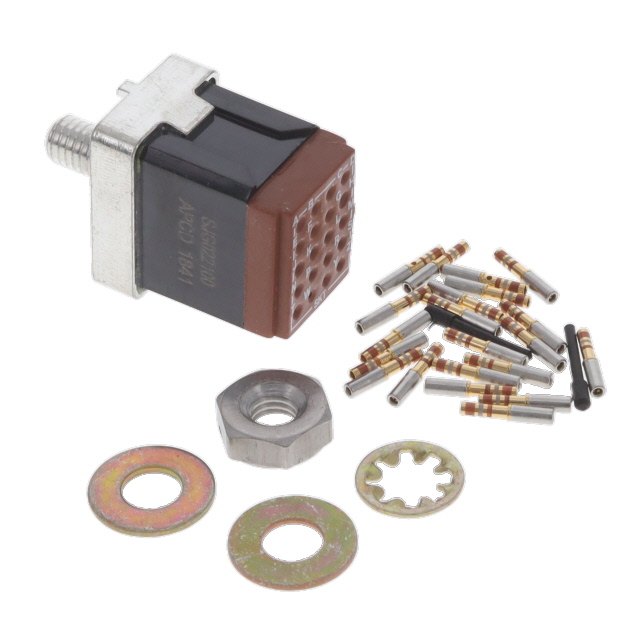

SJG022100

Active

AMPHENOL PCD

CONN GRND BLOCK SZ22 0.580" W

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN GRND BLOCK SZ22 0.580" W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Module Capacity	Contact Size
AMPHENOL PCD SJG022271	Ground Block	25.27 mm	0.995 "	18.8 mm	37.64 mm	1.482 in	0.74 in	20	22
AMPHENOL PCD SJG022200	Ground Block	25.27 mm	0.995 "	18.8 mm	37.39 mm	1.472 in	0.74 in	20	22
AMPHENOL PCD SJG022100	Ground Block			14.73 mm	34.16 mm	1.345 in	0.58 in	20	22
AMPHENOL PCD SJG022270	Ground Block	25.27 mm	0.995 "	18.8 mm	37.39 mm	1.472 in	0.74 in	20	22

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Ground Block Contact Size 22
