F3601.00BK50

Active

Techflex

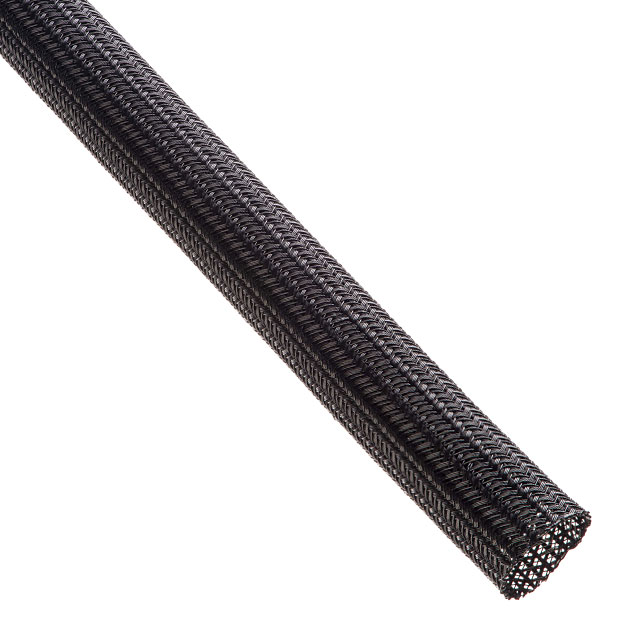

SLEEVING 1" ID PET 50' BLACK

Search across all available documentation for this part.

Active

Techflex

SLEEVING 1" ID PET 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	F3601.00BK50

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside [diameter]	25.4 mm
Diameter - Inside [diameter]	1 in
Diameter - Outside [diameter]	27.18 mm
Diameter - Outside [diameter]	1.07 "
Features	Chemical Resistant
Heat Protection	Flame Retardant
Length	15.24 m
Length [x]	50 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness [custom]	0.89 mm
Wall Thickness [custom]	0.035 in

Part	Length	Length [x]	Color	Heat Protection	Type	Type Attributes	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Abrasion Protection	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wall Thickness [custom]	Wall Thickness [custom]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating
Techflex F3601.00BK50	15.24 m	50 ft	Black	Flame Retardant	Sleeving	Braided	25.4 mm	1 in	Abrasion and Cut Resistant	Chemical Resistant	27.18 mm	1.07 "	0.89 mm	0.035 in	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Polyethylene Terephthalate (PET), Halogen Free Braided Sleeving 1.000" (25.40mm) 50.00' (15.24m)
