DS1868E-10

Active

Dallas Semiconductor

DIGITAL POT, 10000OHM,

Search across all available documentation for this part.

Active

Dallas Semiconductor

DIGITAL POT, 10000OHM,

Technical Specifications

Parameters and characteristics for this part

Specification	DS1868E-10

Configuration	Potentiometer
Features	Cascade Pin
Interface	Serial
Memory Type	Volatile
Mounting Type	Surface Mount
Number of Circuits	2
Number of Taps	256
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

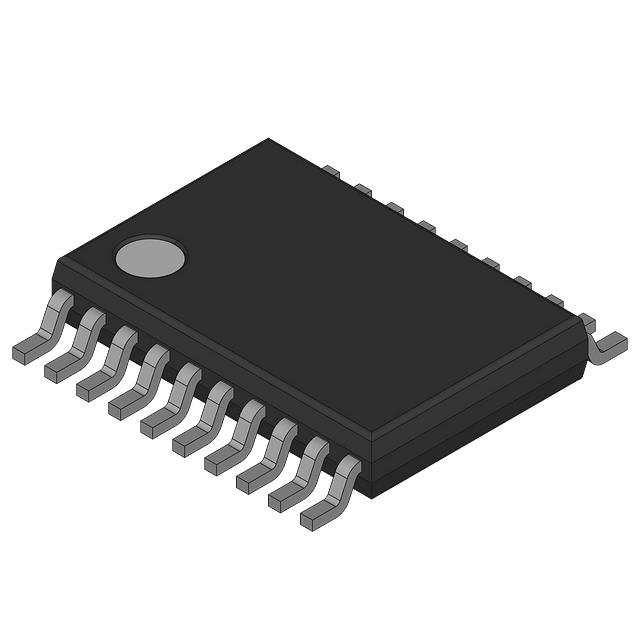

Package / Case	20-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Resistance - Wiper (Ohms) (Typ)	400 Ohms
Resistance (Ohms)	10k
Supplier Device Package	20-TSSOP
Taper	Linear
Temperature Coefficient (Typ)	750 ppm/°C
Tolerance	20 %
Voltage - Supply	5 V
Voltage - Supply [Max]	3.3 V
Voltage - Supply [Min]	2.7 V

Part	Number of Taps	Features	Resistance (Ohms)	Package / Case [y]	Package / Case	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient (Typ)	Taper	Voltage - Supply [Max]	Voltage - Supply	Voltage - Supply [Min]	Interface	Tolerance	Resistance - Wiper (Ohms) (Typ)	Mounting Type	Supplier Device Package	Number of Circuits	Memory Type	Configuration
Dallas Semiconductor DS1868E-10	256	Cascade Pin	10k	4.4 mm	20-TSSOP	0.173 in	85 °C	-40 °C	750 ppm/°C	Linear	3.3 V	5 V	2.7 V	Serial	20 %	400 Ohms	Surface Mount	20-TSSOP	2	Volatile	Potentiometer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	74	$ 4.06

General part information

Digital Potentiometer 10k Ohm 2 Circuit 256 Taps Serial Interface 20-TSSOP
