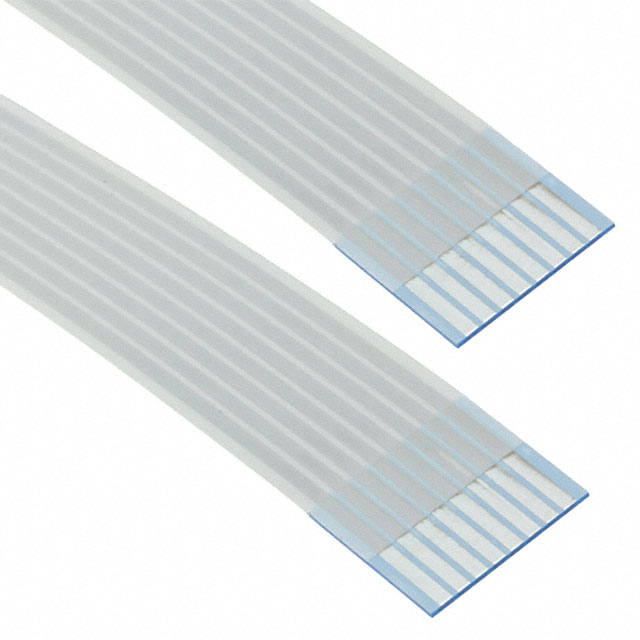

0151670241

Active

Molex

CABLE FFC/FPC 8POS 1MM 10"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 8POS 1MM 10"

Technical Specifications

Parameters and characteristics for this part

Specification	0151670241

Cable Type	FPC, FFC
Length	254 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Length [x]	10 in
Number of Conductors	8
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

...

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Number of Conductors	Pitch [x]	Pitch [x]	Termination Style	Length	Length	Length [x]	Length [x]
Molex 0151670834	4 mm	0.157 in	FFC FPC	15	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	50.8 mm	2 in
Molex 0151670910	4 mm	0.157 in	FFC FPC	21	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	177.8 mm	7 in
Molex 0151670995	4 mm	0.157 in	FFC FPC	29	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	127 mm	5 in
Molex 0151670241	4 mm	0.157 in	FFC FPC	8	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	254 mm		10 in
Molex 0151670944	4 mm	0.157 in	FFC FPC	25	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	50.8 mm	2 in
Molex 0151670887	4 mm	0.157 in	FFC FPC	19	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	152.4 mm	6 in
Molex 0151670262
Molex 0151670263			FFC FPC		0.039 in	1 mm		254 mm		10 in
Molex 0151670516	4 mm	0.157 in	FFC FPC	34	0.039 in	1 mm	Top on One Side Bottom on Other Backers on Both Sides	101.6 mm	4 in
Molex 0151670234			FFC FPC		0.039 in	1 mm				5.984 in	152 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position FFC, FPC Cable 0.039" (1.00mm) 10.0" (254.0mm)
