170-20600

Active

HELLERMANNTYTON

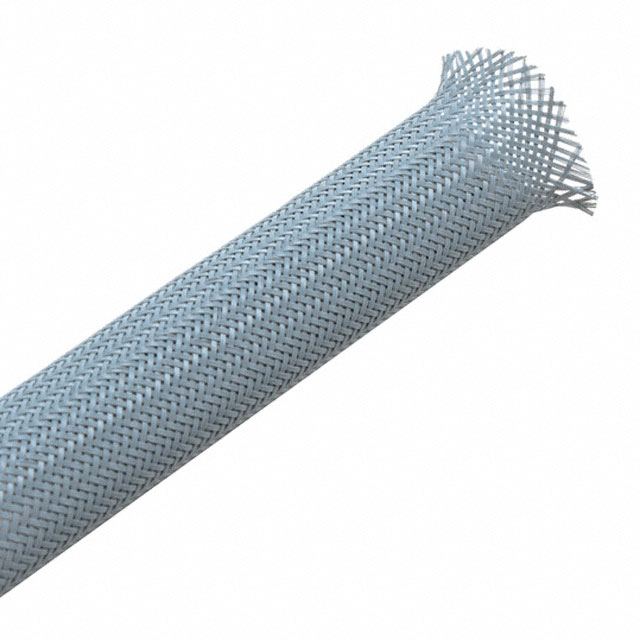

HELAGAINE BRAIDED SLEEVING, 6 MM DIA, PA66,GY, 328FT/REEL

Search across all available documentation for this part.

Active

HELLERMANNTYTON

HELAGAINE BRAIDED SLEEVING, 6 MM DIA, PA66,GY, 328FT/REEL

Technical Specifications

Parameters and characteristics for this part

Specification	170-20600

Abrasion Protection	Abrasion and Cut Resistant
Color	Gray
Diameter - Inside, Expanded [diameter]	0.315 in
Diameter - Inside, Expanded [diameter]	8 mm
Diameter - Outside, Non-Expanded [diameter]	6 mm
Diameter - Outside, Non-Expanded [diameter]	0.236 in
Features	Solvent Resistant, Salt Resistant
Heat Protection	Heat Stabilized
Length [x]	100 m
Length [x]	328 '
Liquid Protection	Fluid Resistant, Gasoline Resistant, Moisture Resistant
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Type	Sleeve
Type Attributes	Expandable

Part	Heat Protection	Material Flammability Rating	Type	Length [x]	Length [x]	Liquid Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Abrasion Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Features
HELLERMANNTYTON 170-20600	Heat Stabilized	UL94 V-2	Sleeve	100 m	328 '	Fluid Resistant Gasoline Resistant Moisture Resistant	150 °C	-60 °C	Gray	Abrasion and Cut Resistant	6 mm	0.236 in	Polyamide (PA66) Nylon 6/6 Halogen Free	0.315 in	8 mm	Expandable	Salt Resistant Solvent Resistant
