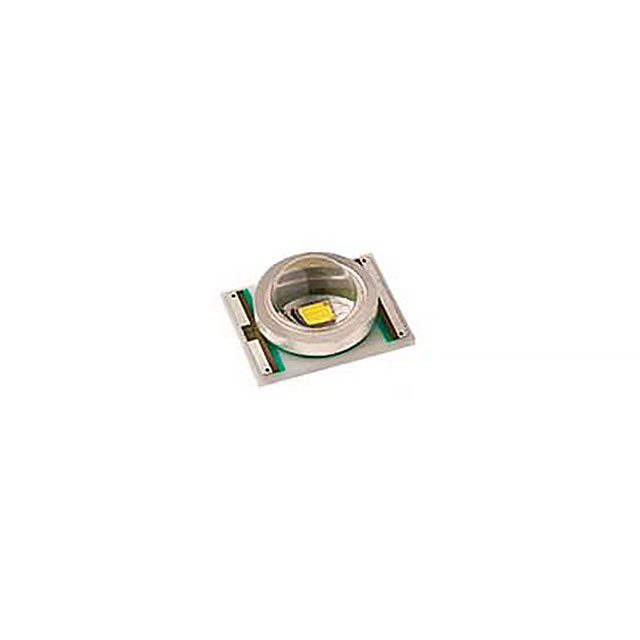

XREWHT-L1-R250-00AB1

Active

Cree LED

XLAMP XR-E LIGHT EMITTING DIODE WARM/NEUTRAL WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XREWHT-L1-R250-00AB1

Active

Cree LED

XLAMP XR-E LIGHT EMITTING DIODE WARM/NEUTRAL WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XREWHT-L1-R250-00AB1

Color	White
Current - Test	350 mA
Flux @ 25°C, Current - Test	91 lm
Flux @ 25°C, Current - Test [Max]	94 lm
Flux @ 25°C, Current - Test [Min]	87 lm
Height - Seated (Max) [Max] [z]	0.181 "
Height - Seated (Max) [Max] [z]	4.6 mm
Lumens/Watt @ Current - Test	79 lm/W
Mounting Type	Surface Mount
Package / Case	9073 Metric
Package / Case	3529
Size / Dimension [x]	9 mm
Size / Dimension [x]	0.354 "
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle [custom]	90 °
Voltage - Forward (Vf) (Typ)	3.3 V

XREWHT Series

...

Part	Package / Case	Supplier Device Package	Color	Current - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Viewing Angle [custom]	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Thermal Resistance of Package [custom]	Flux @ 25°C, Current - Test	Package / Case	CCT (K)	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	CRI (Color Rendering Index)
Cree LED XREWHT-L1-0000-00AB8	2-SMD No Lead	2-SMD	White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	2.9 V	0.181 "	4.6 mm
Cree LED XREWHT-L1-0000-009F4	3529	SMD	Neutral White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	3.3 V	0.181 "	4.6 mm	700 mA	8 °C/W	84 lm	9073 Metric	4750 K	73 lm/W
Cree LED XREWHT-L1-0000-004F7	3529	SMD	Warm White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	3.3 V	0.181 "	4.6 mm	700 mA	8 °C/W	54 lm	9073 Metric	3200 K	47 lm/W	57 lm	52 lm	80
Cree LED XREWHT-L1-0000-00DF4	2-SMD No Lead	2-SMD	Neutral White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	2.9 V	0.181 "	4.6 mm	700 mA		111 lm		4750 K	109 lm/W
Cree LED XREWHT-L1-0000-00AF7	2-SMD No Lead	2-SMD	Warm White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	2.9 V	0.181 "	4.6 mm	700 mA		91 lm		3200 K	90 lm/W	94 lm	87 lm	80
Cree LED XREWHT-L1-0000-00CA3	2-SMD No Lead	2-SMD	White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	2.9 V	0.181 "	4.6 mm
Cree LED XREWHT-L1-R250-00AB1	3529	SMD	White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	3.3 V	0.181 "	4.6 mm		8 °C/W	91 lm	9073 Metric		79 lm/W	94 lm	87 lm
Cree LED XREWHT-L1-0000-00CA2	3529	SMD	Neutral White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	3.3 V	0.181 "	4.6 mm		8 °C/W	104 lm	9073 Metric	4750 K	90 lm/W
Cree LED XREWHT-L1-0000-005A8	3529	SMD	Warm White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	3.3 V	0.181 "	4.6 mm	700 mA	8 °C/W		9073 Metric
Cree LED XREWHT-L1-R250-008B4	3529	SMD	White	350 mA	7 mm	0.276 in	9 mm	0.354 "	Surface Mount	90 °	3.3 V	0.181 "	4.6 mm		8 °C/W	77 lm	9073 Metric		67 lm/W	81 lm	74 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 4.27
		500	$ 4.00
		1250	$ 3.68
Newark	Each (Supplied on Full Reel)	1	$ 4.34
		3000	$ 4.14
		6000	$ 3.87
		12000	$ 3.59
		18000	$ 3.45
		30000	$ 3.40

Description

General part information

XREWHT Series

LED Lighting XLamp® XR-E White 3.3V 350mA 90° 3529 (9073 Metric)
