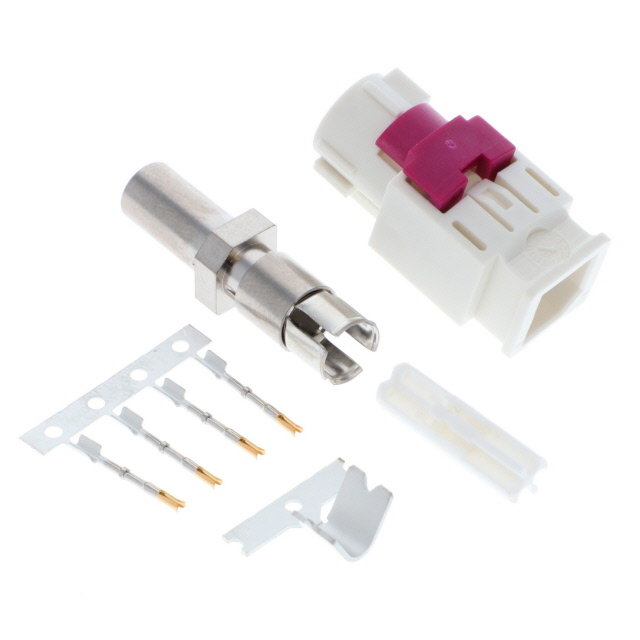

HSD-04B-S-SD-SG-C4

Active

Adam Tech

CONN FAKRA HIGH SPEED DATA 4POS

Search across all available documentation for this part.

Active

Adam Tech

CONN FAKRA HIGH SPEED DATA 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	HSD-04B-S-SD-SG-C4

Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Quadraxial, Fakra, HSD®
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polybutylene Terephthalate (PBT)
Fastening Type	Latch Lock
Features	Code B
Frequency - Max [Max]	2 GHz
Housing Color	White
Impedance	100 Ohms
Mating Cycles	25
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Center Contact Plating	Connector Style	Shield Termination	Number of Ports	Dielectric Material	Frequency - Max [Max]	Contact Termination	Housing Color	Mounting Type	Connector Type	Center Contact Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mating Cycles	Body Material	Features	Body Finish
Adam Tech HSD-04B-S-SD-SG-C4	Gold	Fakra HSD® Quadraxial	Crimp	1	Polybutylene Terephthalate (PBT)	2 GHz	Solder	White	Free Hanging (In-Line)	Female Socket Jack	Phosphor Bronze	100 Ohms	-40 °C	105 ░C	Latch Lock	25	Brass	Code B
Adam Tech HSD-04B-S-PRA-SG-C1-TR	Gold	Fakra HSD® Quadraxial	Solder	1		2 GHz	Solder	White	Through Hole Right Angle	Male Pin Plug	Brass	100 Ohms	-40 °C	105 ░C	Latch Lock	25	Zinc Alloy	Code B	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

HSD®, Fakra, Quadraxial Connector Jack, Female Socket 100 Ohms Free Hanging (In-Line) Solder
