5530111F

Active

DIALIGHT

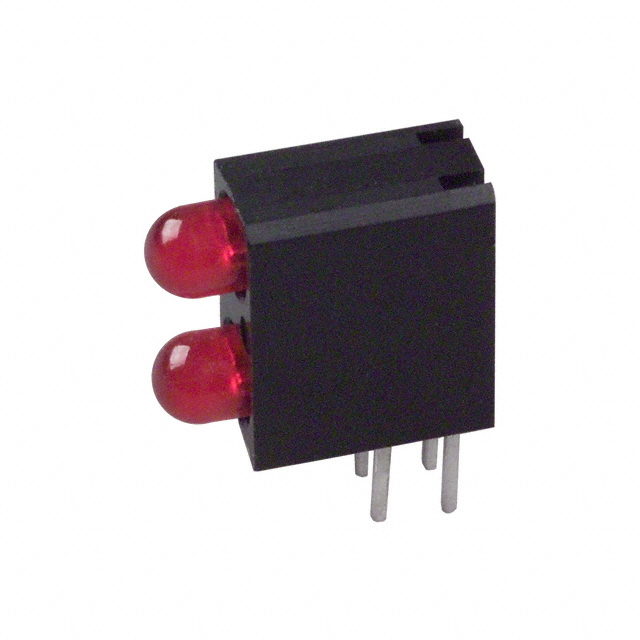

LED CBI 3MM BI-LVL RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530111F

Active

DIALIGHT

LED CBI 3MM BI-LVL RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530111F

Color	Red
Configuration	2 High
Current	10 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	10 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	45 °
Voltage Rating	2 V
Wavelength - Peak	650 nm

5530111 Series

Part	Voltage Rating	Millicandela Rating	Mounting Type	Wavelength - Peak	Lens Type	Lens Size	Lens Size	Lens Style	Viewing Angle	Configuration	Color	Current	Configuration [z]	Configuration [y]
DIALIGHT 5530111310F	2 V	10 mcd	Through Hole Right Angle	650 nm	Diffused Tinted	3 mm	T-1	Round with Domed Top	45 °	2 High	Red
DIALIGHT 5530111306F	2 V	10 mcd	Through Hole Right Angle	650 nm	Diffused Tinted	3 mm	T-1	Round with Domed Top	45 °	2 High	Red
DIALIGHT 5530111F	2 V	10 mcd	Through Hole Right Angle	650 nm	Diffused Tinted	3 mm	T-1	Round with Domed Top	45 °	2 High	Red	10 mA
DIALIGHT 5530111300F	2 V	10 mcd	Through Hole Right Angle	650 nm	Diffused Tinted				45 °	2 High	Red	10 mA
DIALIGHT 5530111210F
DIALIGHT 5530111006F	2 V	10 mcd	Through Hole Right Angle	650 nm	Diffused Tinted	3 mm	T-1	Round with Domed Top	45 °	2 High	Red
DIALIGHT 5530111004F	2 V	10 mcd	Through Hole Right Angle	650 nm	Diffused Tinted	3 mm	T-1	Round with Domed Top	45 °		Red		2	4
DIALIGHT 5530111805F			Through Hole Right Angle			3 mm	T-1	Round with Domed Top			Red
DIALIGHT 5530111400F	2 V	10 mcd	Through Hole Right Angle	635 nm	Diffused Tinted	3 mm	T-1	Round with Domed Top	60 °	2 High	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.48
		10	$ 1.62
		100	$ 1.18
		500	$ 1.01
		1000	$ 0.96
		2000	$ 0.91
		5000	$ 0.87
		10000	$ 0.84

Description

General part information

5530111 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 2V 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
