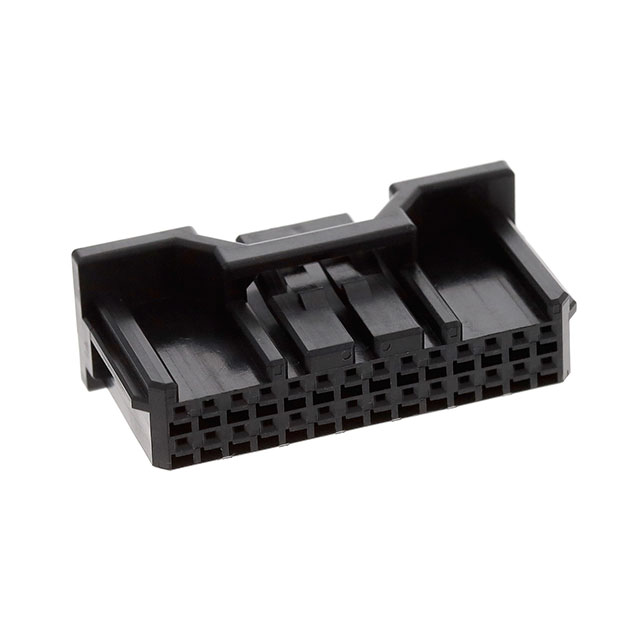

IMSA-13065S-2-28Y500

Active

IRISO USA Inc.

CONN RCPT HSG 28POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-13065S-2-28Y500

Active

IRISO USA Inc.

CONN RCPT HSG 28POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMSA-13065S-2-28Y500

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Retainer
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	28
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	0.098 in
Row Spacing	2.5 mm

IMSA-13065S Series

Part	Mounting Type	Features	Fastening Type	Insulation Material	Contact Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Row Spacing	Row Spacing	Contact Termination	Color	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Number of Positions
IRISO USA Inc. IMSA-13065S-2-08Y500	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle	8
IRISO USA Inc. IMSA-13065S-2-20Y501	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle	20
IRISO USA Inc. IMSA-13065S-2-32Y502	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle
IRISO USA Inc. IMSA-13065S-2-16Y500	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle		16
IRISO USA Inc. IMSA-13065S-2-16Y502	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle		16
IRISO USA Inc. IMSA-13065S-2-16Y501	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle		16
IRISO USA Inc. IMSA-13065S-2-28Y502	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle	28
IRISO USA Inc. IMSA-13065S-2-28Y500	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle	28
IRISO USA Inc. IMSA-13065S-24A	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle	24
IRISO USA Inc. IMSA-13065S-2-08Y502	Free Hanging (In-Line)	Retainer	Locking Ramp	Polybutylene Terephthalate (PBT)	Female Socket	Contacts Not Included	125 °C	-40 °C	2	0.098 in	2.5 mm	Crimp	Black	0.079 in	2 mm	Receptacle	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.78
		10	$ 0.66
		25	$ 0.63
		40	$ 0.62
		88	$ 0.59
		264	$ 0.54
		440	$ 0.48
		968	$ 0.43
		2464	$ 0.39

Description

General part information

IMSA-13065S Series

28 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
