M7OXK-2506R

Active

3M (TC)

D-SUB CABLE - MFL25K/MC26M/X

Search across all available documentation for this part.

Active

3M (TC)

D-SUB CABLE - MFL25K/MC26M/X

Technical Specifications

Parameters and characteristics for this part

Part	Type	1st Connector	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Shielding	2nd Connector	Contact Finish	Length	Length	Color
3M (TC) M7OXK-5006J	DB50	Female Sockets Receptacle	0.76 Ám	30 Áin	50	Unshielded	Individual Wire Leads	Gold	6 ft	1.83 m
3M (TC) M7OXK-2506J	DB25	Female Sockets Receptacle	0.76 Ám	30 Áin		Unshielded	Individual Wire Leads	Gold	6 ft	1.83 m
3M (TC) M7OXK-2506R	DB25	Female Sockets Receptacle	0.76 Ám	30 Áin		Unshielded	Individual Wire Leads	Gold	6 ft	1.83 m	Multiple Ribbon
3M (TC) M7OXK-2510J	DB25	Female Sockets Receptacle	0.76 Ám	30 Áin		Unshielded	Individual Wire Leads	Gold	10 ft	3.05 m
3M (TC) M7OXK-5010R	DB50	Female Sockets Receptacle	0.76 Ám	30 Áin	50	Unshielded	Individual Wire Leads	Gold	10 ft	3.05 m	Multiple Ribbon
3M (TC) M7OXK-1510J	DB15	Female Sockets Receptacle	0.76 Ám	30 Áin	15	Unshielded	Individual Wire Leads	Gold	10 ft	3.05 m
3M (TC) M7OXK-5006R	DB50	Female Sockets Receptacle	0.76 Ám	30 Áin	50	Unshielded	Individual Wire Leads	Gold	6 ft	1.83 m	Multiple Ribbon
3M (TC) M7OXK-0906R	DB9	Female Sockets Receptacle	0.76 Ám	30 Áin	9	Unshielded	Individual Wire Leads	Gold	6 ft	1.83 m	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

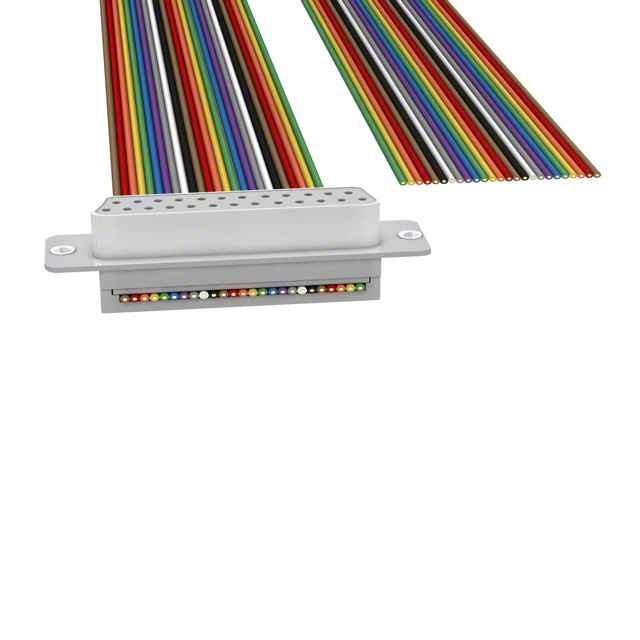

D-Sub Cable Assembly DB25 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
