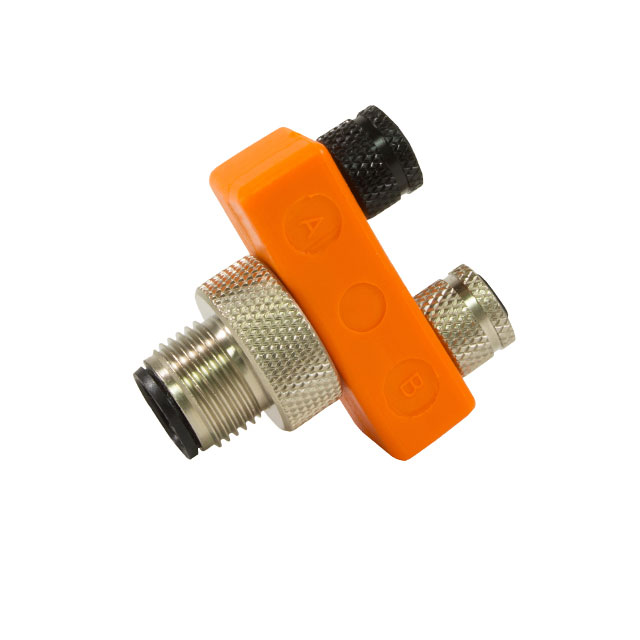

SPL003 OR032

Obsolete

ALPHA WIRE

CONN Y-ADPT 4P-3/3P M-F/F INLINE

Search across all available documentation for this part.

Obsolete

ALPHA WIRE

CONN Y-ADPT 4P-3/3P M-F/F INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SPL003 OR032

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets (2)
Features	Coupling Nut
Housing Color	Orange
Housing Material	Polyurethane
Housing Material	PUR
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	4
Number of Positions (Convert To)	3
Number of Positions (Convert To)	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Orientation (Convert From)	Keyed
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M8
Shielding	Unshielded
Voltage Rating	63 V

Part	Housing Color	Number of Positions (Convert To)	Number of Positions (Convert To)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Number of Positions (Convert From)	Connector Style	Voltage Rating	Shell Size - Insert (Convert From)	Shielding	Orientation (Convert From)	Convert To (Adapter End)	Mounting Type	Shell Size - Insert (Convert To) [custom]	Housing Material	Housing Material	Convert From (Adapter End)	Features
ALPHA WIRE SPL003 OR032	Orange	3	2	90 °C	-25 °C	IP67 - Dust Tight Waterproof	4	Distributor Y-Shaped	63 V	M12	Unshielded	Keyed	Female Sockets (2)	Free Hanging (In-Line)	M8	Polyurethane	PUR	Male Pins	Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular Connector Distributor Y-Shaped 4/3 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)

Technical documentation and resources
