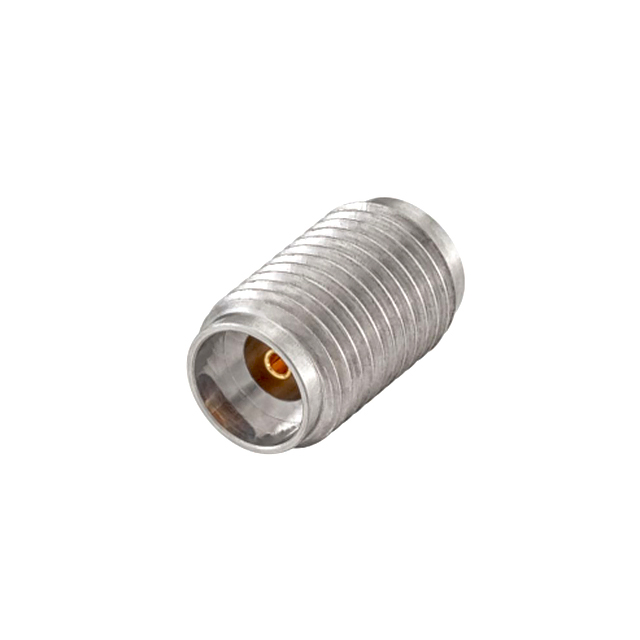

02K526-800S3

Active

Rosenberger

RF CONNECTOR, FEMALE, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF CONNECTOR, FEMALE, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	02K526-800S3

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polystyrene (PS)
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Panel Mount, Threaded
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Number of Ports	Contact Termination	Mating Cycles	Dielectric Material	Features	Impedance	Body Material	Mounting Type	Center Contact Material	Voltage Rating	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shield Termination	Connector Style	Housing Color	Center Contact Plating
Rosenberger 02K526-800S3	1	Compression	500	Polystyrene (PS)	Field Replaceable For Hermetically Sealed Pin	50 Ohms	Stainless Steel	Panel Mount Threaded	Beryllium Copper	250 VDC	40 GHz	85 °C	-40 °C	Female Socket Jack	Solder	2.92 mm	Silver	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount, Threaded Compression
