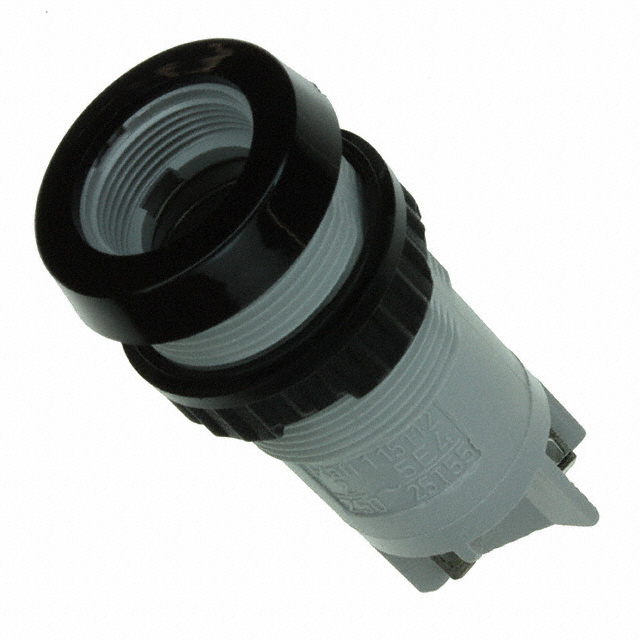

1.15112.1010000

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 2A 250V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 2A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1.15112.1010000

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Current Rating (Amps)	2 A
Electrical Life	100000 Cycles
Ingress Protection	IP40
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.3 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Illuminated, Standard
Voltage Rating - AC	250 V

Part	Actuator Type	Switch Function	Mounting Type	Current Rating (Amps)	Mechanical Life	Actuator Marking	Type	Voltage Rating - AC	Electrical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Termination Style	Circuit
RAFI USA 1.15112.1010000	Button Round	Off-Mom	Panel Mount Front	2 A	100000 Cycles	No Marking	Illuminated Standard	250 V	100000 Cycles	20.3 mm	-25 °C	85 °C	IP40	Quick Connect - 0.110" (2.8mm)	SPST-NO
RAFI USA 1.15112.1210000	Button Round	Off-Mom On-Mom	Panel Mount Front	2 A	100000 Cycles	No Marking	Illuminated Standard	250 V	100000 Cycles	20.3 mm	-25 °C	85 °C	IP40	Quick Connect - 0.110" (2.8mm)	DPST-NO/NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
