355-012-500-202
ActiveEDAC Inc.

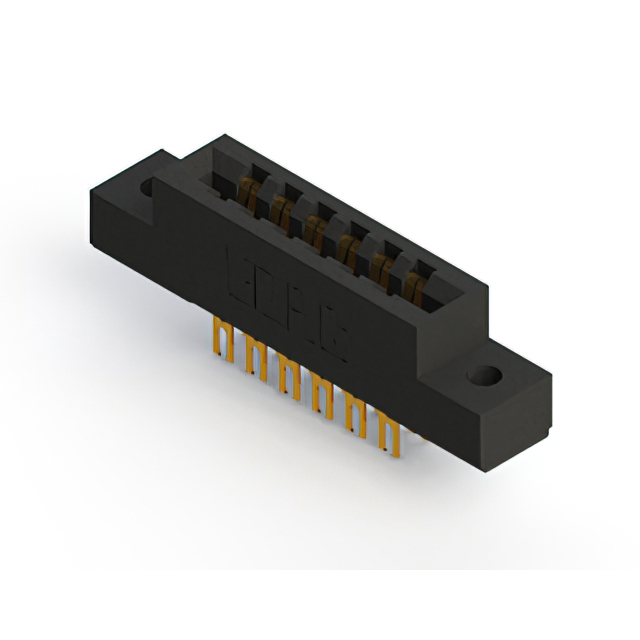

CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
355-012-500-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-012-500-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
355-012 Series
| Part | Read Out | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Material - Insulation | Gender | Termination | Number of Positions/Bay/Row [custom] | Termination Rows | Number of Rows | Card Type | Pitch [x] | Pitch [x] | Contact Material | Contact Type | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Black | Polyester Thermoplastic | Female | Solder | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | Panel Mount Through Hole | |
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Black | Polyester Thermoplastic | Female | Solder | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | Board Edge Straddle Mount | Card Extender |
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Black | Polyester Thermoplastic | Female | Solder | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | Panel Mount Through Hole | |
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Polyester Thermoplastic | Female | Solder | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | Panel Mount Through Hole | |||
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Polyester Thermoplastic | Female | Solder | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | Board Edge Straddle Mount | |||
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Polyester Thermoplastic | Female | Solder | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | Board Edge Straddle Mount | Card Extender | ||
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Black | Polyester Thermoplastic | Female | Solder Eyelet(s) | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | ||
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Polyester Thermoplastic | Female | Solder Eyelet(s) | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | ||||
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Black | Polyester Thermoplastic | Female | Solder Eyelet(s) | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | ||
EDAC Inc. | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 12 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Black | Polyester Thermoplastic | Female | Solder | 6 | 2 | 2 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Copper Alloy | Semi Bellows | Board Edge Straddle Mount | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.13 | |
| 10 | $ 1.93 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.79 | |||
| 100 | $ 1.70 | |||
| 250 | $ 1.50 | |||
Description
General part information
355-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
