Q-040440003018i

Active

Amphenol Custom Cable

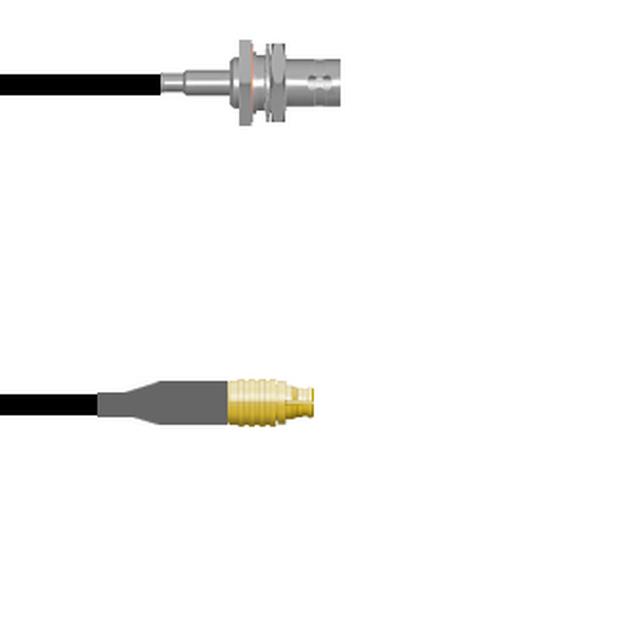

CBL ASSY BNC-SMP JACK-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-040440003018i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMP JACK-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040440003018i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-040440 Series

Part	1st Connector	2nd Connector	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	1st Contact Gender	Color	Length	Length	Length	Features	Style	1st Connector Mounting Feature	Cable Type	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-040440003001M	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Black	1 m	3.3 ft	39.4 in	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-174	4 GHz
Amphenol Custom Cable Q-040440003060i	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Black	1.5 m	5 ft	5 '	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-174	4 GHz
Amphenol Custom Cable Q-040440003072i	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Black	1.8 m	6 ft	72 in	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-174	4 GHz
Amphenol Custom Cable Q-040440005003i	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Copper	76.2 mm		3 in	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-316	4 GHz
Amphenol Custom Cable Q-040440003018i	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Black				Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-174	4 GHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-040440003003M	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Black	3 m	9.8 '	118.1 in	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-174	4 GHz
Amphenol Custom Cable Q-040440005.75M	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Copper	750 mm		29.53 "	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-316	4 GHz
Amphenol Custom Cable Q-040440005024i	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Copper	609.6 mm		24 "	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-316	4 GHz
Amphenol Custom Cable Q-040440003006i	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Black	152.4 mm		6 in	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-174	4 GHz
Amphenol Custom Cable Q-040440003108i	BNC Jack	SMP Plug	Free Hanging (In-Line)	Panel Mount	50 Ohms	Male	Female	Black	2.7 m	9 ft	108 in	Shielded	BNC to SMP	Bulkhead - Front Side Nut	RG-174	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 106.25
		25	$ 104.18
		50	$ 102.11
		100	$ 100.04
		250	$ 97.97

Description

General part information

Q-040440 Series

Cable Assembly Coaxial BNC to SMP RG-174 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
