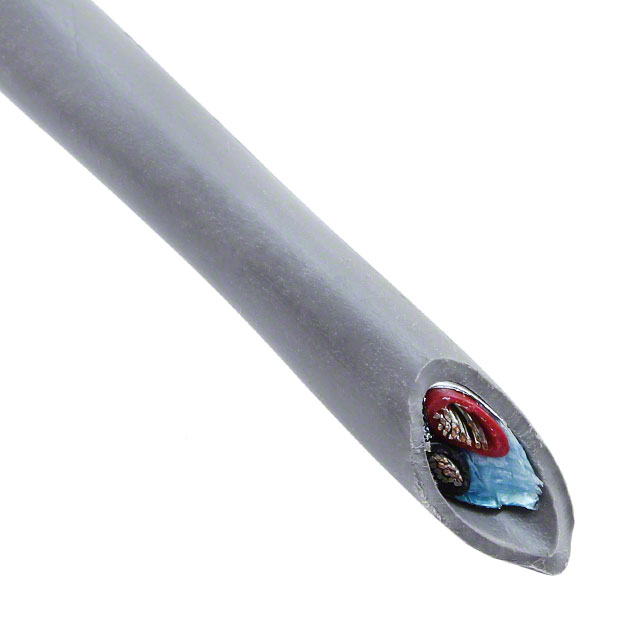

2241C SL021

Active

ALPHA WIRE

CABLE 2COND 18AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	2241C SL021

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.74 mm
Jacket (Insulation) Diameter [diameter]	0.226 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Material	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Coverage	Cable Type	Wire Gauge	Usage	Voltage	Conductor Material	Shield Type	Length	Length	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Features
ALPHA WIRE 2241C SL021	Aluminum	Slate	2	16	30 AWG	5.74 mm	0.226 in	Poly-Vinyl Chloride (PVC)	100 %	Multi-Conductor	18 AWG	Communication Control	300 V	Copper Tinned	Foil	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 1.18

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Slate 18 AWG Foil 1000.0' (304.8m)
